B163B-Front Left Turn Control Circuit Low: Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

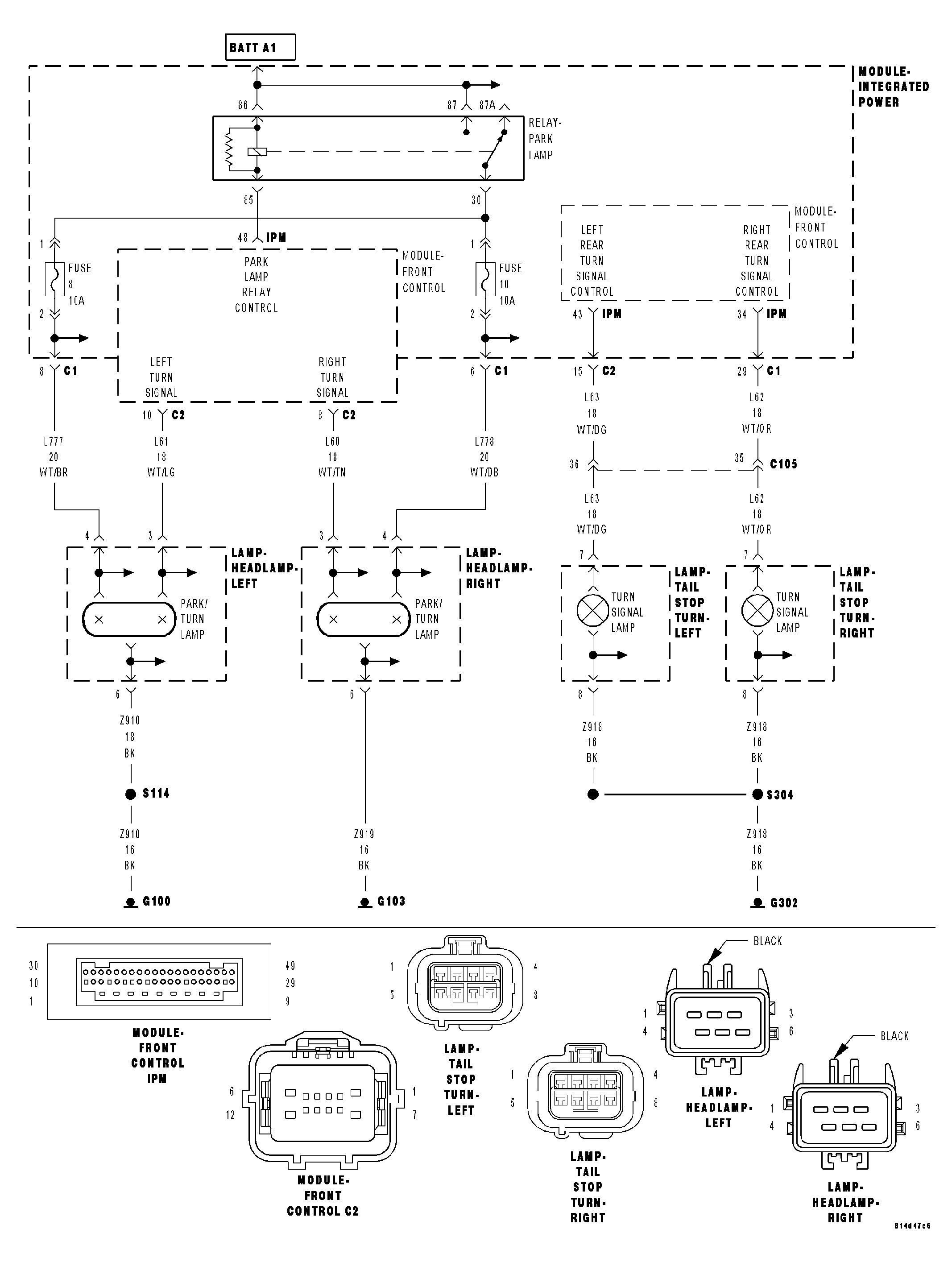

Fig 1: TURN SIGNALS SCHEMATIC
GC0029182Courtesy of DAIMLERCHRYSLER CORP.
