Diagnostic Test

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

1) INTERMITTENT CONDITION
Turn the ignition on.

With the Scan Tool, clear all FCM DTC's.

Turn the Left Turn Signals on.

With the Scan Tool read the DTC information.

Does the Scan Tool read: B163B-FRONT LEFT TURN CONTROL CIRCUIT LOW?

Yes
1. Go To step 2).
No
1. The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
2. Perform BODY VERIFICATION TEST - VER 1 .
2) L61 FRONT LEFT TURN SIGNAL CONTROL CIRCUIT

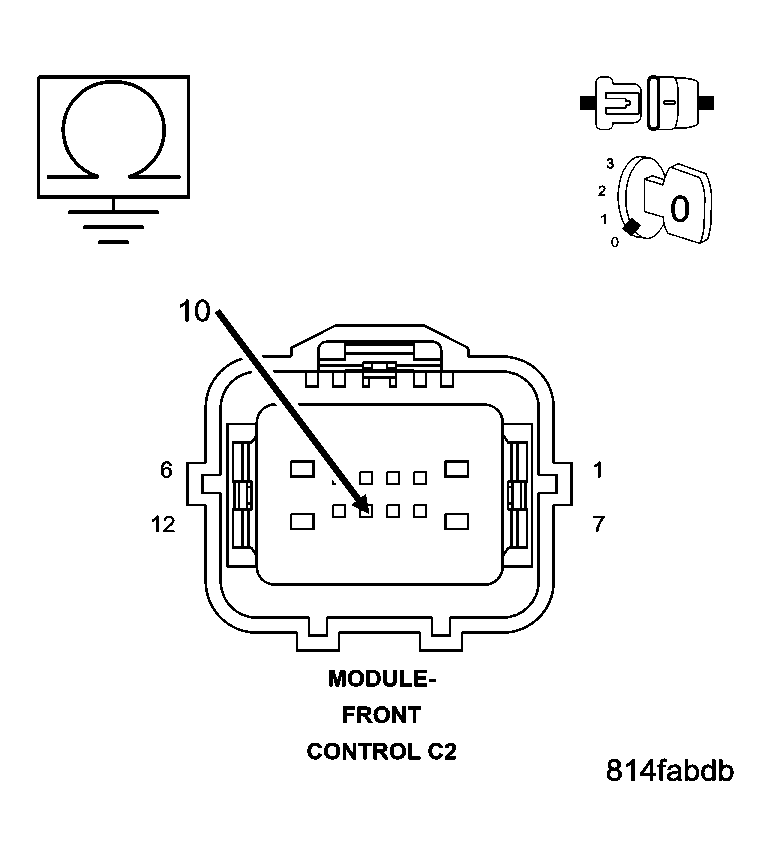

Fig 1: Checking L61 Front Left Turn Signal Control Circuit
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off.

Disconnect the FCM C2 connector.

Measure the resistance between ground and the (L61) Front Left Turn Signal Control circuit.

Is the resistance below 5.0 ohms?

Yes
1. Repair the (L61) Front Left Turn Signal Control circuit for a short to ground.
2. Perform BODY VERIFICATION TEST - VER 1 .
No
1. Replace the Front Control Module in accordance with the service information.
2. Perform BODY VERIFICATION TEST - VER 1 .
