Diagnostic Test

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

1) INTERMITTENT CONDITION
Turn the ignition on.

With the Scan Tool, clear all FCM DTC's.

Turn the Headlamps on.

With the Scan Tool read the DTC information.

Does the Scan Tool read: B1630-RIGHT LOW BEAM CONTROL CIRCUIT HIGH?

Yes
1. Go To step 2).
No
1. The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
2. Perform BODY VERIFICATION TEST - VER 1 .
2) RIGHT LOW BEAM BULB
Turn the ignition off.

Inspect the Right Low Beam Bulb Assembly.

Is the inoperative bulb OK?

Yes
1. Go To step 3).
No
1. Replace the Inoperative bulb in accordance with the service information.
2. Perform BODY VERIFICATION TEST - VER 1 .
3) (L44) RIGHT LOW BEAM CONTROL CIRCUIT

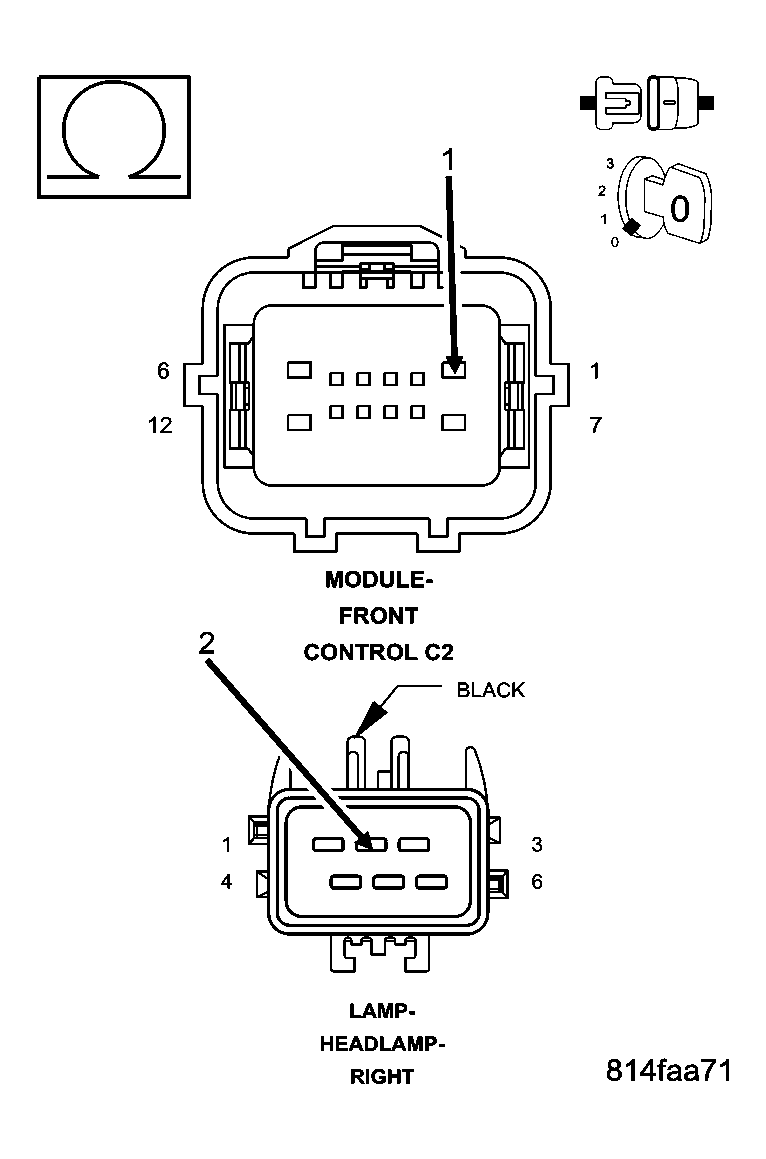

Fig 1: Checking (L44) Right Low Beam Control Circuit
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off.

Disconnect the FCM C2 harness connector.

Measure the resistance of the (L44) Right Low Beam Control circuit.

Is the resistance above 5.0 ohms?

Yes
1. Repair the (L44) Right Low Beam Control circuit for an open condition.
2. Perform BODY VERIFICATION TEST - VER 1 .
No
1. Replace the Front Control Module (FCM) in accordance with the service information.
2. Perform BODY VERIFICATION TEST - VER 1 .
