B1802-Driver Door Lock/Unlock Switch Circuit High - Driver Door Module: Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

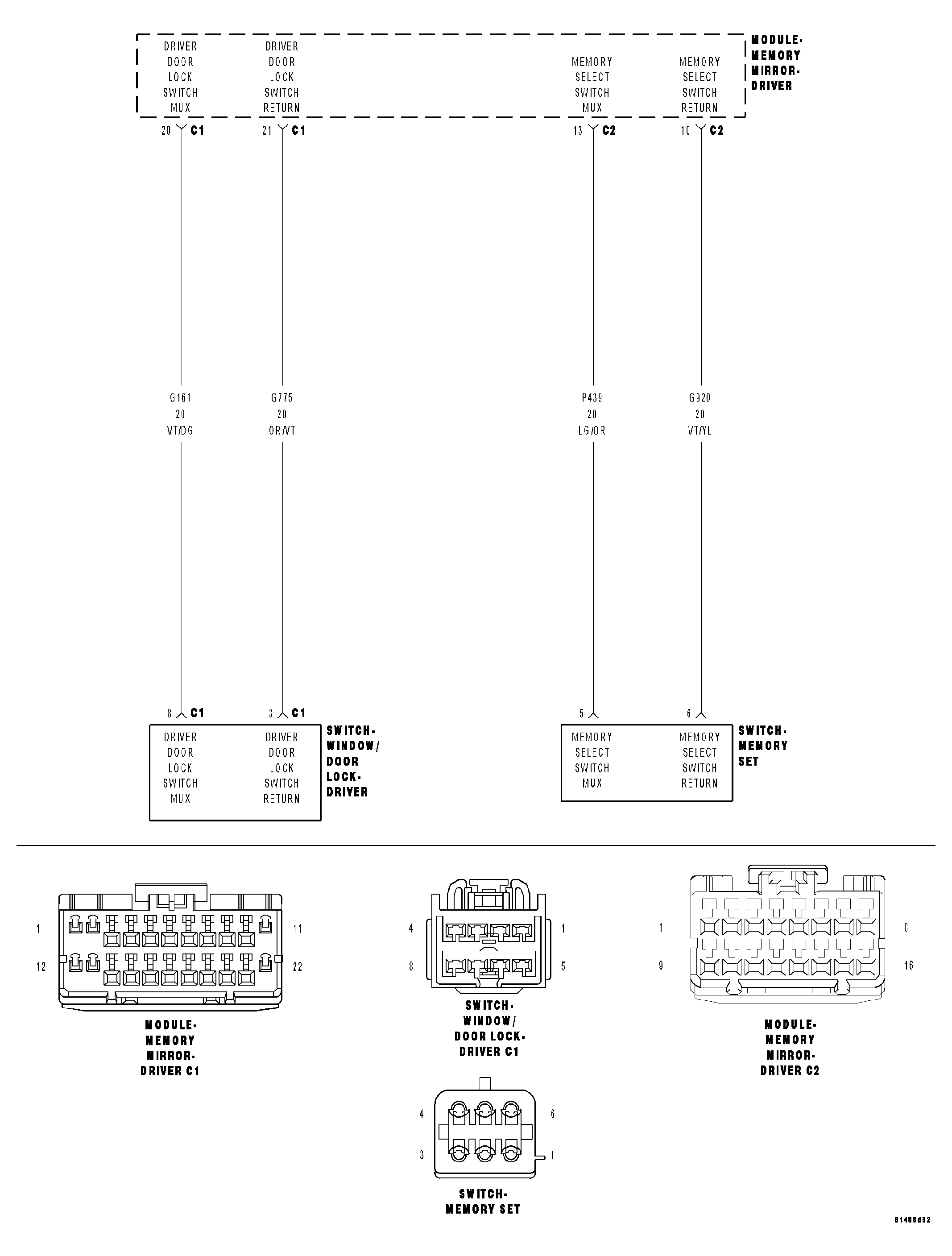

Fig 1: DRIVER DOOR LOCK/UNLOCK SWITCH CIRCUIT SCHEMATIC

Courtesy of DAIMLERCHRYSLER CORP.

For the Power Door Lock circuit diagram (Refer to ELECTRICAL/POWER LOCKS - SCHEMATICS AND DIAGRAMS)
