Park Assist Module: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

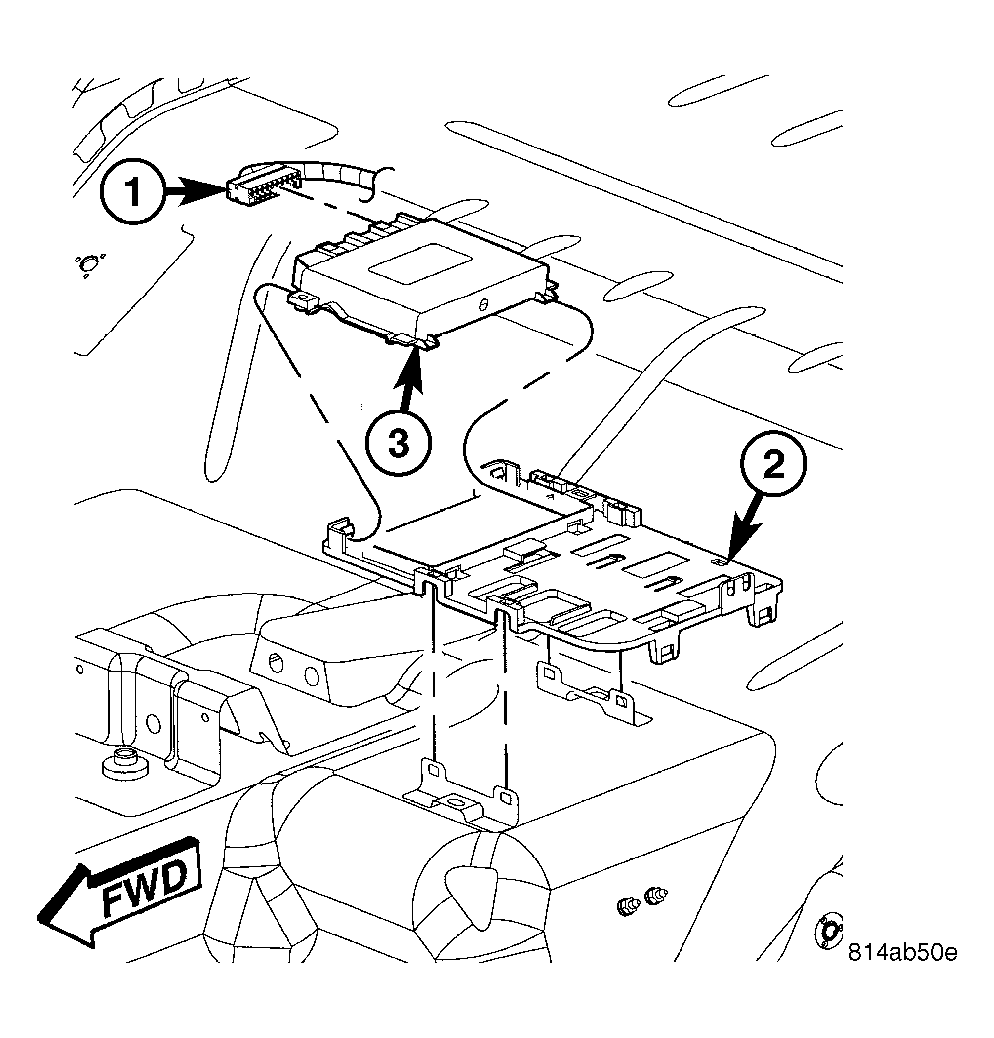

Fig 1: Removing/Installing Module Electrical Connector

Courtesy of DAIMLERCHRYSLER CORP.

Place the park assist module (3) in its location on the mounting plate (2) and firmly snap into place.
Connect the electrical connector (1).

Fig 2: Isobars Location
Courtesy of DAIMLERCHRYSLER CORP.
Lower the rear seat back down into position.
Connect the battery negative cable.
