Diagnostic Test

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

1) CHECK FOR AN INTERMITTENT CONDITION

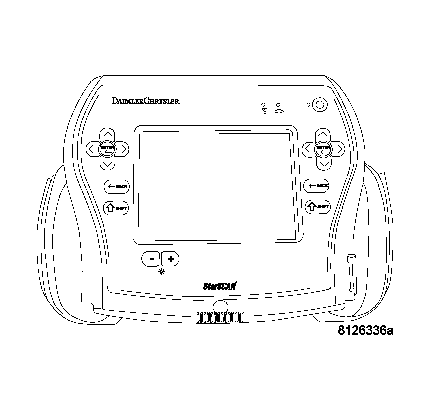

Fig 1: Scan Tool - Starscan
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition on, then off, and then on again.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1460-CHANNEL 1 AUDIO SPEAKER OUTPUT CIRCUIT PERFORMANCE?

Yes
1. Replace the Amplifier in accordance with the service information.
2. Perform BODY VERIFICATION TEST - VER 1 .
No
1. The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
2. Perform BODY VERIFICATION TEST - VER 1 .
