Diagnostic Test

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. 1)  CHECK FOR ACTIVE CONTROL CIRCUIT/PERFORMANCE DTCs

    Turn the ignition on.

    With the scan tool, read active HVAC DTCs.

    Does the scan tool display any active: XXXX CONTROL CIRCUIT/PERFORMANCE DTCs?

    Yes

    1. Diagnose and repair the DTC(s). Refer to the DIAGNOSTIC CODE INDEX for a complete list of all HVAC related symptoms.

    No

    1. Go To step  2).
  2. 2)  CHECK THE FRONT MODE DOOR ACTUATOR CIRCUIT RESISTANCE
    Fig 1: Checking Front Mode Door Actuator Circuit
    GC0028269Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the A/C Heater Control C2 harness connector.

    Measure the resistance between the (C266) Front Mode Door Driver circuit and the (C66) Front Mode Door Common Driver circuit in the A/C Heater Control C2 harness connector.

    Is the resistance above 70.0 ohms?

    Yes

    1. Go To step  3).

    No

    1. Replace the A/C Heater Control in accordance with the Service Information.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  3. 3)  CHECK THE (C266) FRONT MODE DOOR DRIVER CIRCUIT FOR AN OPEN

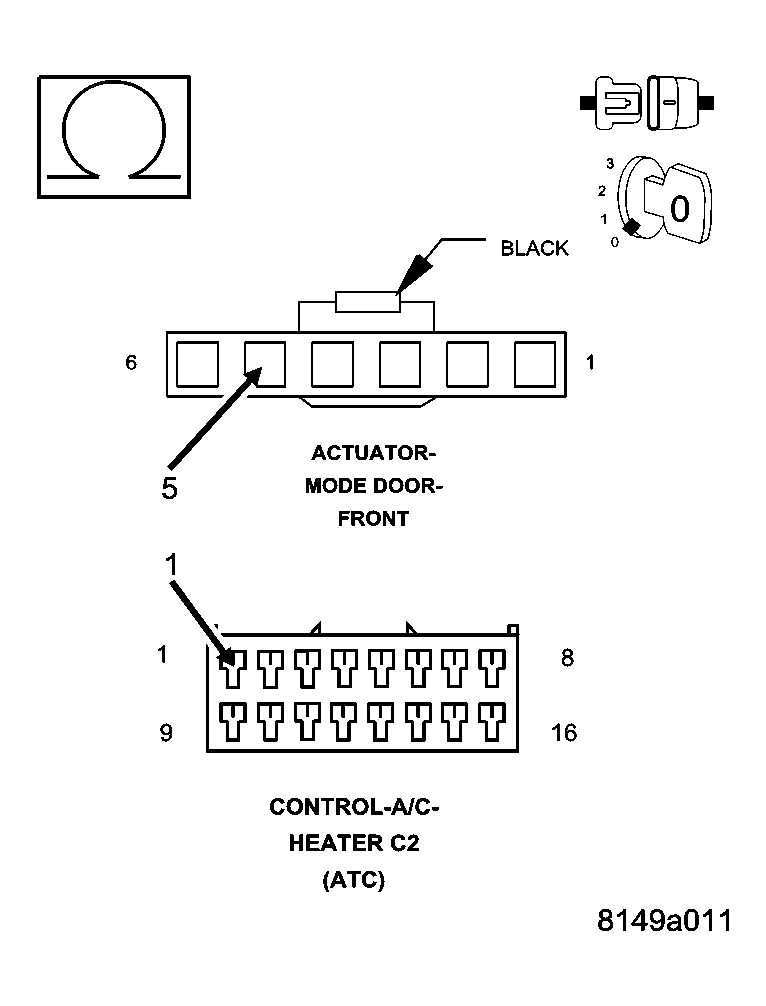

    Fig 2: Checking Front Mode Door Driver Circuit For Open
    GC0028274Courtesy of DAIMLERCHRYSLER CORP.

    Disconnect the Front Mode Door Actuator harness connector.

    Measure the resistance of the (C266) Front Mode Door Driver circuit between the Front Mode Door Actuator harness connector and the A/C Heater Control C2 harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go To step  4).

    No

    1. Repair the (C266) Front Mode Door Driver circuit for an open.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  4. 4)  CHECK THE (C66) FRONT MODE DOOR COMMON DRIVER CIRCUIT FOR AN OPEN

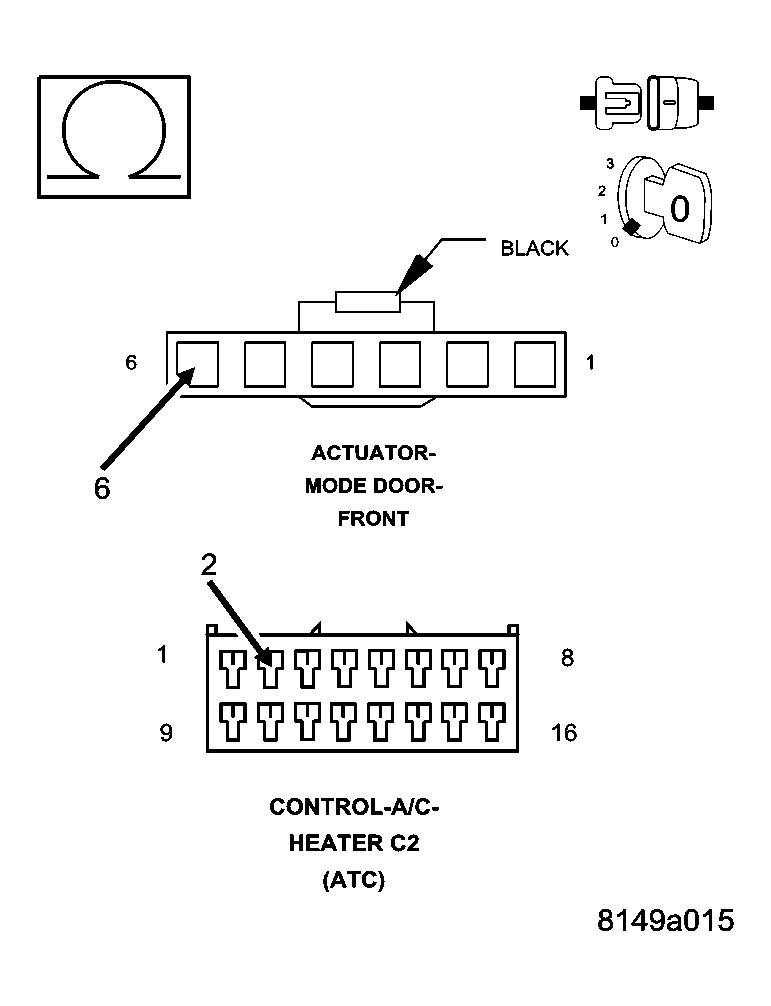

    Fig 3: Checking Front Mode Door Common Driver Circuit For Open
    GC0028275Courtesy of DAIMLERCHRYSLER CORP.

    Measure the resistance of the (C66) Front Mode Door Common Driver circuit between the Front Mode Door Actuator harness connector and the A/C Heater Control C2 harness connector.

    Is the resistance below 5.0 ohms?

    No

    1. Replace the Front Mode Door Actuator in accordance with the Service Information.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    Yes

    1. Repair the (C66) Front Mode Door Common Driver circuit for an open.
    2. Perform BODY VERIFICATION TEST - VER 1 .
