46-Front Mode Door Bound (MTC): Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

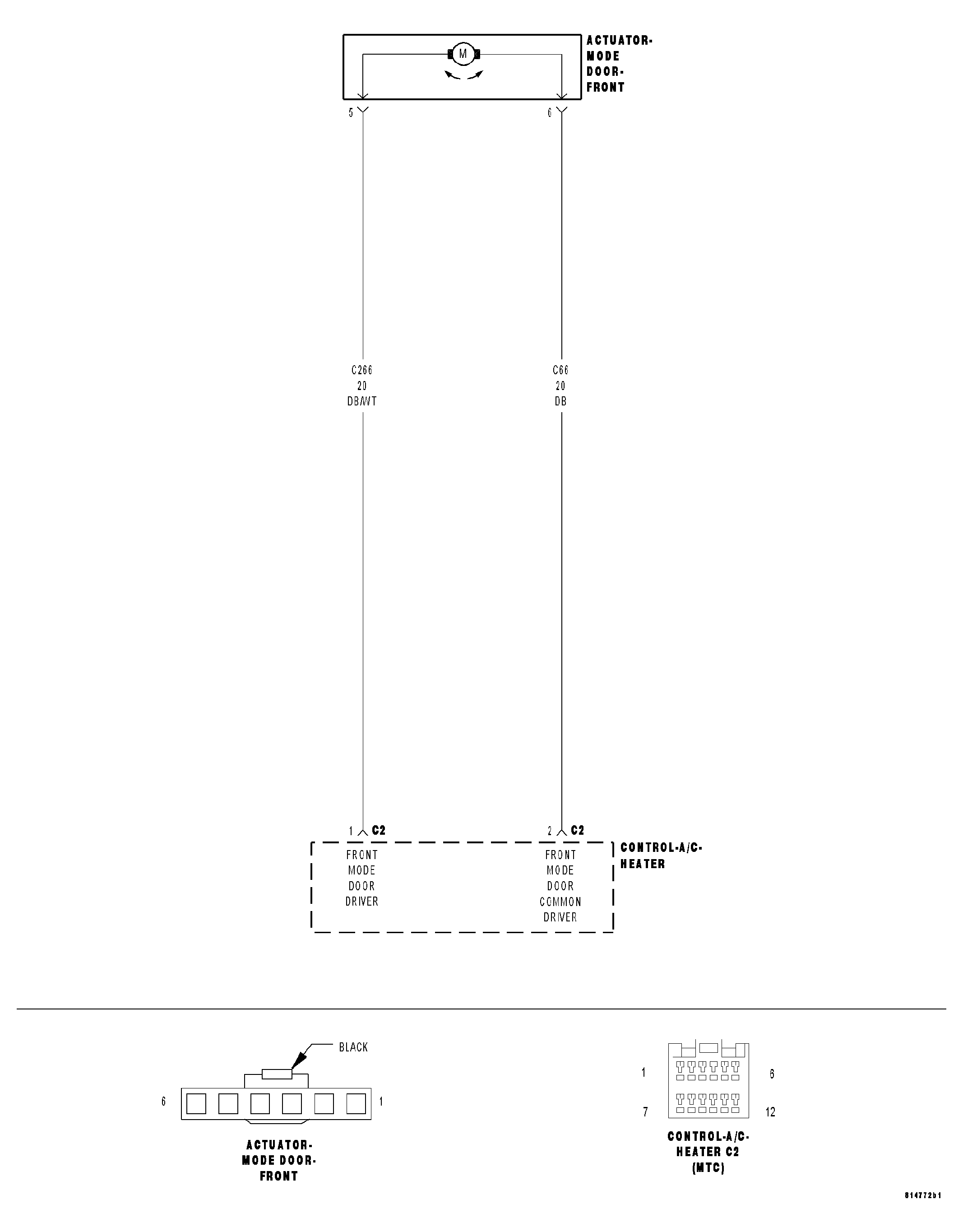

Fig 1: Front Mode Door Actuator Circuit Diagram

Courtesy of DAIMLERCHRYSLER CORP.

For the Manual Temperature Control (MTC) circuit diagram (Refer to HEATING & AIR CONDITIONING - SCHEMATICS AND DIAGRAMS) .

For a complete wiring diagram refer to SYSTEM WIRING DIAGRAMS .
