Washer Reservoir: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Position the washer reservoir into the left front fender wheel house from underneath the vehicle.
- Raise the washer reservoir to position the filler neck into the engine compartment. Rotate the reservoir as necessary to gain clearance.

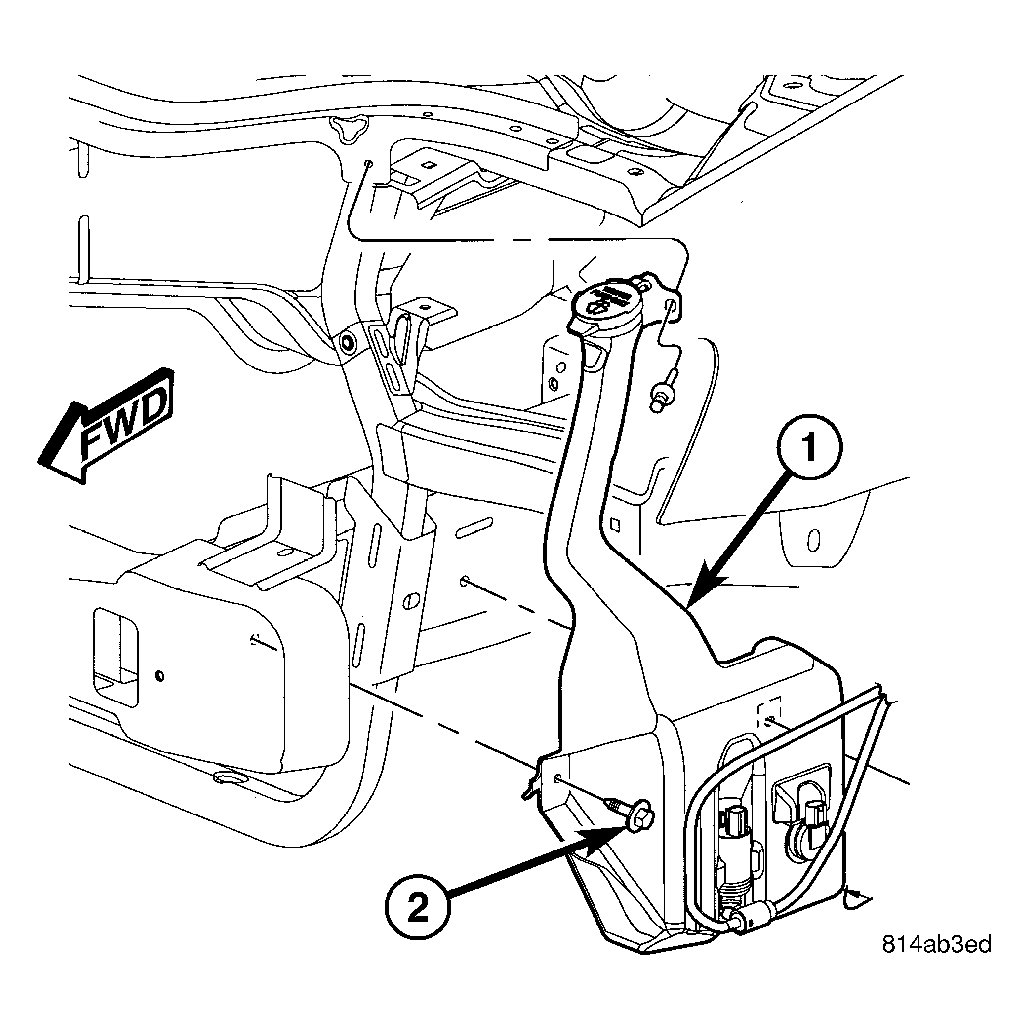

- Install the two screws that secure the washer reservoir to the left front frame rail. Tighten the screws to 7 N.m (60 in. lbs.).
NOTE: Make sure to properly connect the washer hoses to the windshield washer pump. Failure to properly connect the hoses will cause the front and rear washer systems to operate incorrectly.

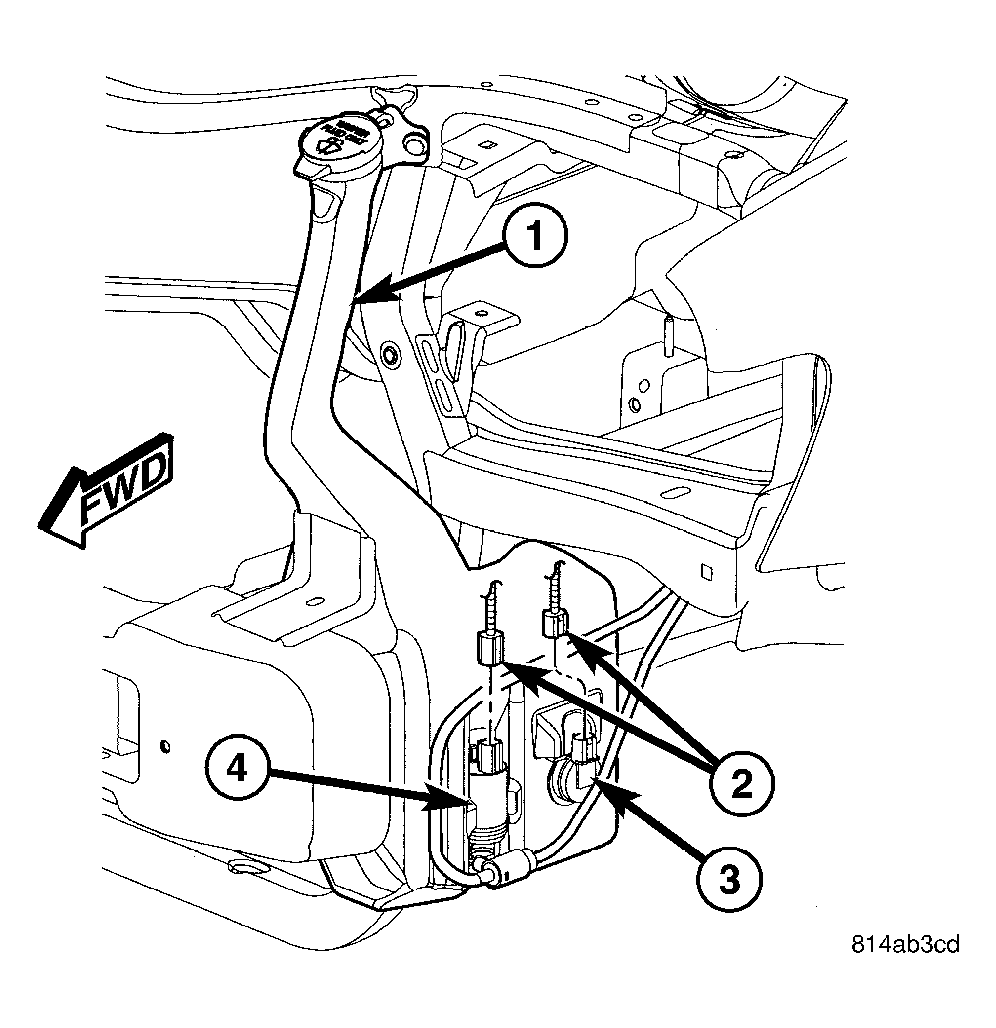

- Properly connect the two washer hoses to the windshield washer pump on the reservoir (1).
- Connect the wire harness connectors (2) to the washer fluid level switch (3) and the windshield washer pump (4).
- Install the liner into the left front fender wheel house.
- Lower the vehicle.

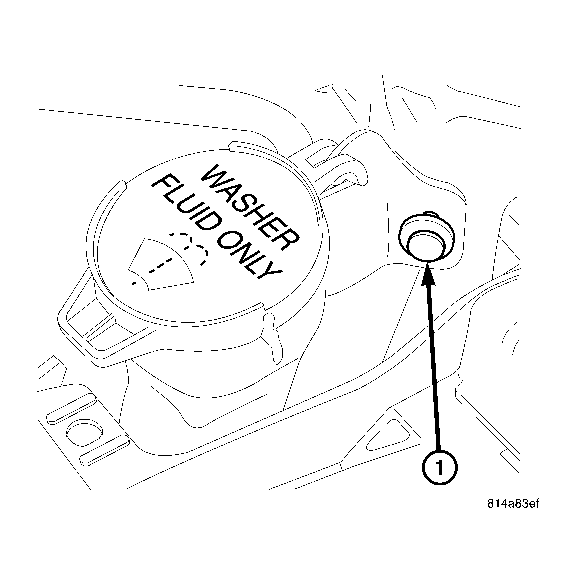

- Install the retainer (1) that secures the washer reservoir filler neck to the upper radiator support.
- Install the washer reservoir filler cap hinge onto the hook on the filler neck and close the cap.
- Refill the washer reservoir with the washer fluid drained during removal.
- Reconnect the battery negative cable.
