Sensor-Washer Fluid Level: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

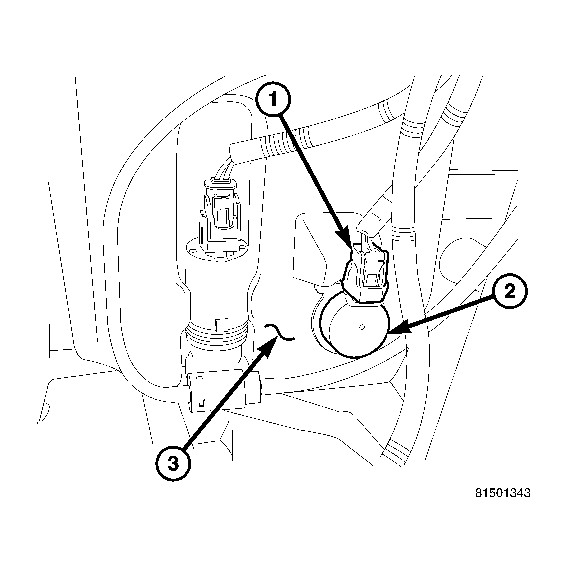

- Lubricate a new rubber grommet with clean washer fluid and install it into the washer fluid level switch mounting hole located in the outboard side of the washer reservoir (3).
- Position the barbed nipple of the washer fluid level switch (2) to the rubber grommet in the reservoir and press firmly and evenly on the switch until it is fully seated in the rubber grommet.
- Connect the wire harness connector (1) to the top of the washer fluid level switch.
- Install the liner into the left front fender wheel house.
- Lower the vehicle.
- Refill the washer reservoir with the washer fluid drained during removal.
- Reconnect the negative battery cable.
