Relay-Wiper On/Off: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

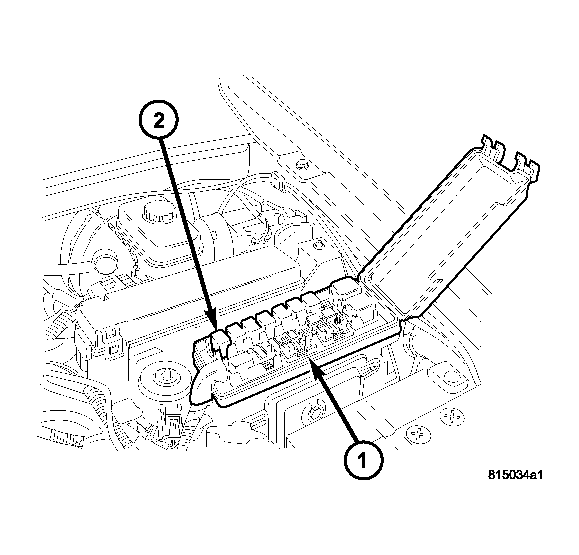

Fig 1: Wiper On/Off Relay-R and I
GC0029515Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Refer to the fuse and relay layout map on the inside of the integrated power module (IPM) cover for wiper on/off relay location.
  1. Position the wiper on/off relay (2) into the proper receptacle of the IPM (1) located in the engine compartment.
  2. Align the wiper on/off relay terminals with the terminal cavities in the IPM receptacle and push down firmly on the relay until the terminals are fully seated.
  3. Close the cover of the IPM.
  4. Reconnect the negative battery cable.
