Relay-Wiper High/Low: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

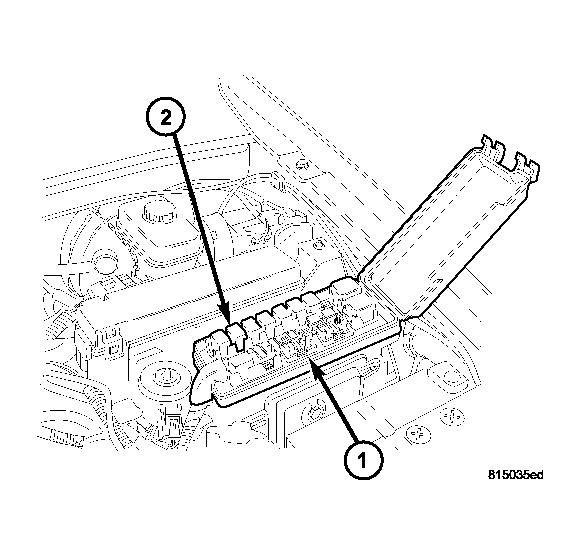

Fig 1: Wiper High/Low Relay-R and I
GC0029514Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Open the cover of the integrated power module (IPM) (1) located in the engine compartment.
    NOTE: Refer to the fuse and relay layout map on the inside of the IPM cover for wiper high/low relay location.
  3. Remove the wiper high/low relay (2) from the IPM.
