Rain Sensor Module: Operation

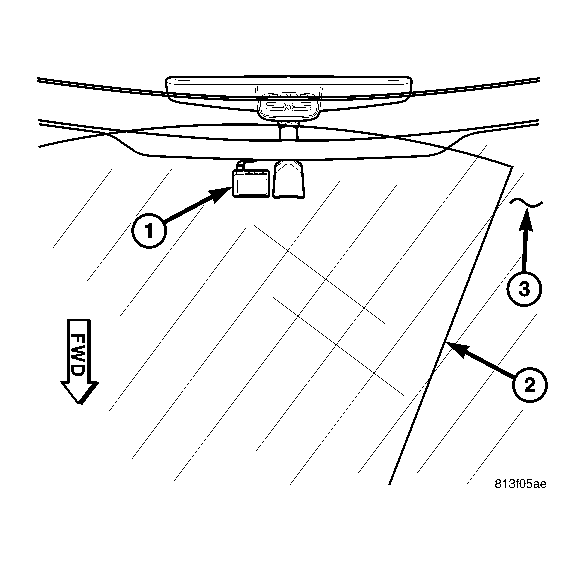

The microprocessor-based rain sensor module (1) senses moisture in the wipe pattern (2) on the outside of the windshield glass (3) and sends wipe commands to the front control module (FCM). Four infrared diodes within the sensor generate infrared light beams that are aimed by four of the convex optical lenses near the base of the sensor through the windshield glass. Four additional convex optical lenses near the top of the sensor are focused on the infrared light beams on the outside of the windshield glass and allow the four photocells within the sensor to sense changes in the intensity of these infrared light beams. When sufficient moisture accumulates within the wipe pattern on the windshield glass, the sensor detects a change in the monitored infrared light beam intensity.
The internal programming of the sensor then sends the appropriate electronic wipe command messages to the FCM over the controller area network (CAN) data bus. The FCM responds by activating or deactivating the front wiper system. The steering control module (SCM) sends electronic sensitivity level messages to the rain sensor module over the CAN data bus based upon the driver-selected sensitivity setting of the control knob on the control stalk of the right multi-function switch. The higher the selected sensitivity setting the more sensitive the rain sensor is to the accumulated moisture on the windshield glass, and the more frequently the sensor will send wipe commands to the FCM to operate the front wiper system.
The rain sensor module operates on battery current received through a fuse in the power distribution center (PDC) on a fused B+ circuit. The rain sensor module receives ground at all times through the body wire harness. It is important to note that the default condition of the automatic wiper system is low. Therefore, if no message is received by the FCM from the rain sensor module for more than about five seconds when in the Auto sensitivity wipe mode, the wipers will default to a constant low wipe state.
The rain sensor module ground and battery current inputs may be diagnosed using conventional diagnostic tools and methods. The most reliable, efficient, and accurate means to diagnose the rain sensor module requires the use of a scan tool and the appropriate diagnostic information.
