Section 593 (Wiper System & Washer System (Service Information)): Pump-Washer-Windshield: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

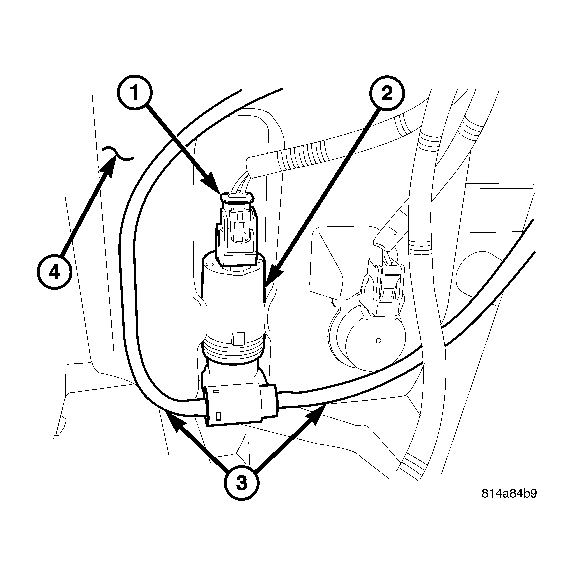

- Lubricate a new rubber grommet with clean washer fluid and install it into the washer pump mounting hole located in the outboard side of the washer reservoir (4).
- Position the barbed inlet nipple of the windshield washer pump (2) to the rubber grommet in the reservoir and press firmly and evenly on the pump until it is fully seated in the rubber grommet.NOTE: Make sure to properly connect the washer hoses to the windshield washer pump. Failure to properly connect the hoses will cause the front and rear washer systems to operate incorrectly.
- Properly connect the two washer hoses (3) to the barbed outlet nipples of the windshield washer pump.
- Connect the wire harness connector (1) to the top of the windshield washer pump.
- Install the liner into the left front fender wheel house.
- Lower the vehicle.
- Refill the washer reservoir with the washer fluid drained during removal.
- Reconnect the negative battery cable.
