Front Wiper Module: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

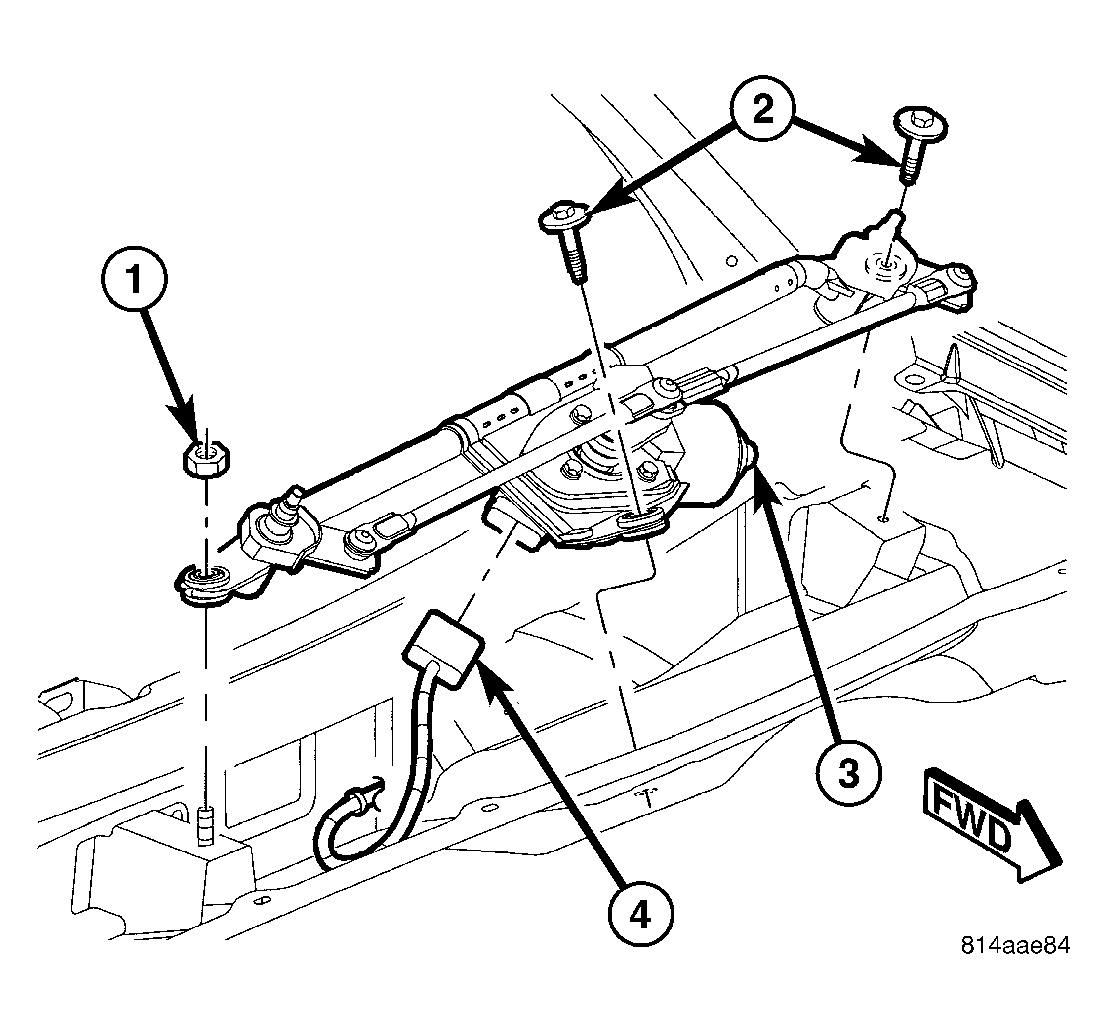

Fig 1: Front Wiper Module R/I
GC0029500Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the front wiper module to the cowl plenum and connect the wire harness connector (4) to the wiper motor (3).
  2. Loosely install the one nut (1) and the two bolts (2) that secure the front wiper module to the cowl plenum panel.
  3. Working from left to right, tighten the two bolts and one nut to 5 N.m (45 in. lbs.).
  4. Install the cowl plenum cover/grille panel (Refer to BODY/EXTERIOR/COWL GRILLE - INSTALLATION) .
  5. Install the front wiper arms (Refer to ELECTRICAL/FRONT WIPERS/WASHERS/FRONT WIPER ARMS - INSTALLATION) .
  6. Reconnect the negative battery cable.
