Front Washer Nozzle: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

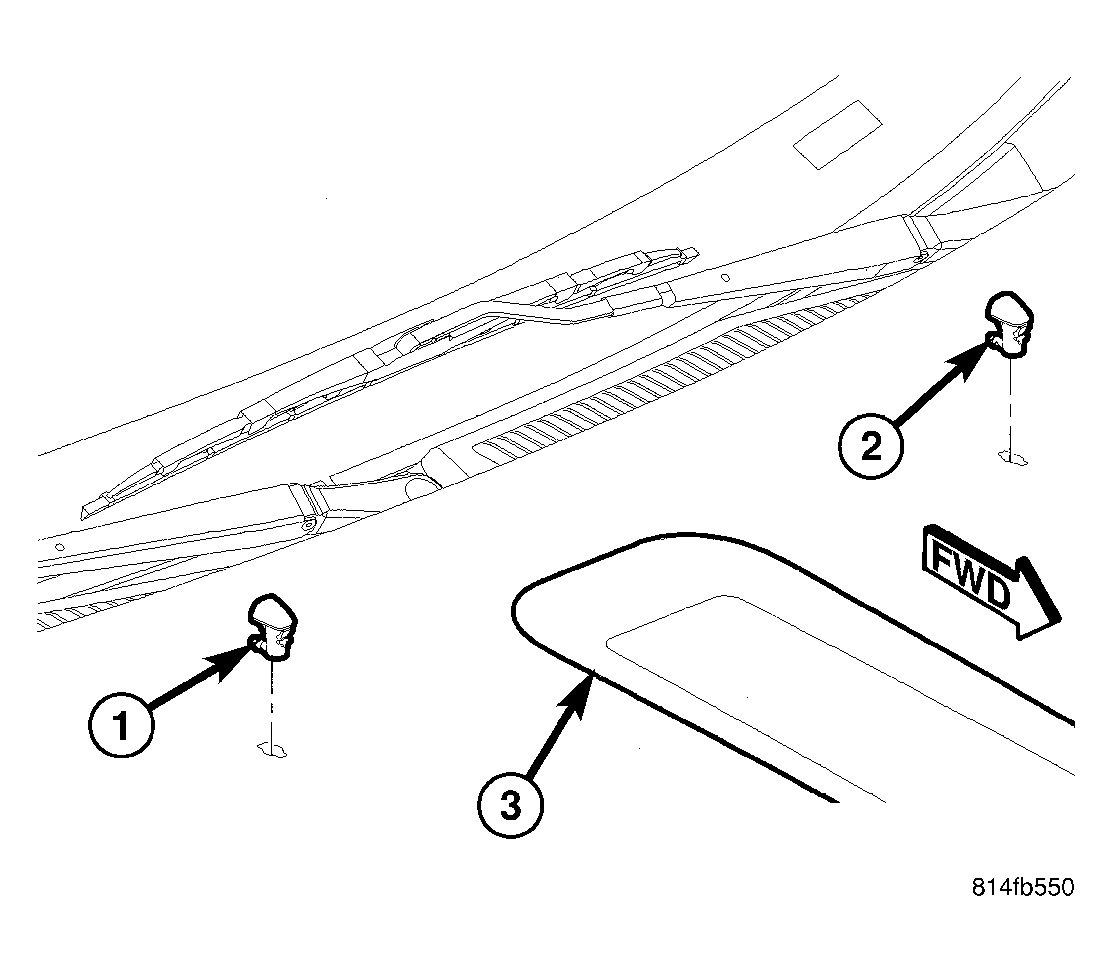

- From the top of the hood (3), position the nipple end of the front washer nozzles (1 and 2) through the mounting hole as required and engage the anti-rotation tab of the nipple into the anti-rotation notch in the mounting hole.
- Push firmly and evenly on the top of the front washer nozzle until the integral snap features lock into place on the underside of the hood.

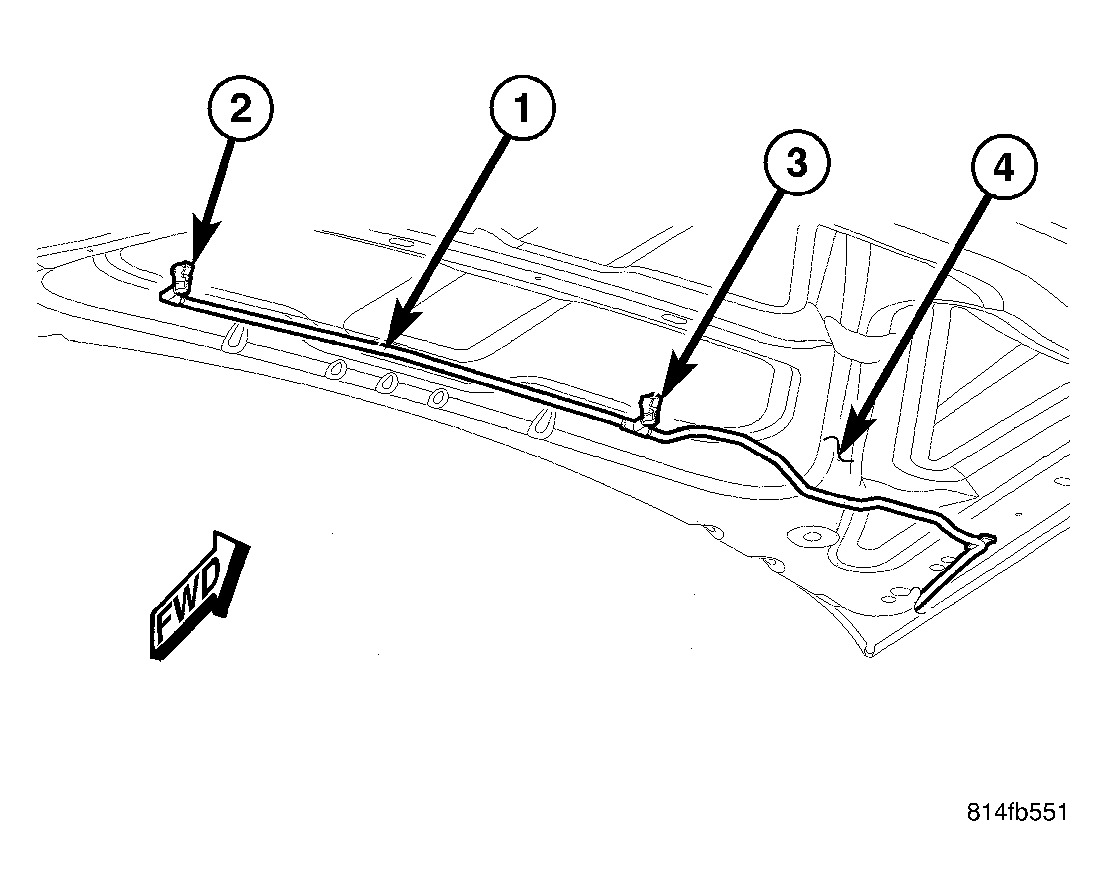

- From the underside of the hood (4), reconnect the washer hose (1) to the barbed nipple of the front washer nozzles (2 and 3) as required.
