Front Washer Nozzle: Description
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

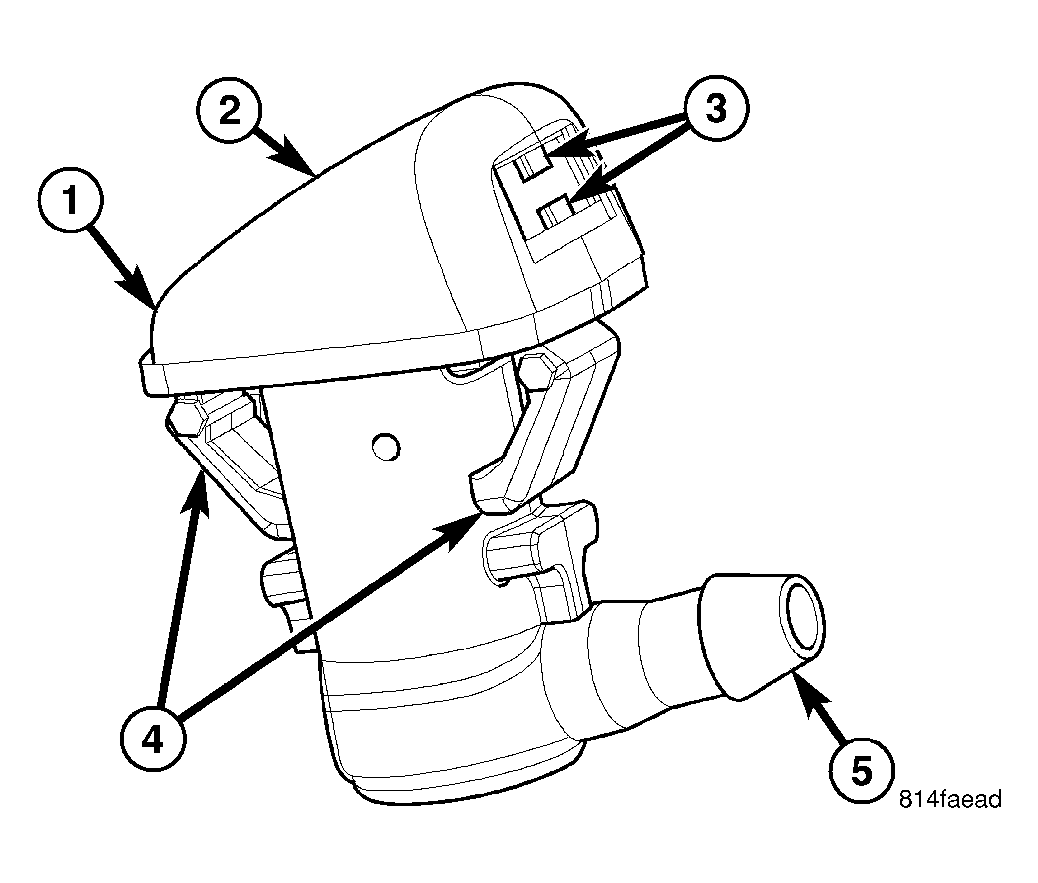

The two front washer nozzles (1) have integral snap features (4) that secure them in dedicated holes located in the hood near the base of the windshield. The domed upper surface (2) of the washer nozzles is visible on the top of the hood, and the nozzle orifices (3) are oriented towards the windshield glass. The washer plumbing fittings (5) for the washer nozzles are concealed beneath the inner hood panel. These fluidic washer nozzles are constructed of molded plastic.
The washer nozzles cannot be adjusted or repaired and, if faulty or damaged, they must be replaced.
