Rear Door

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

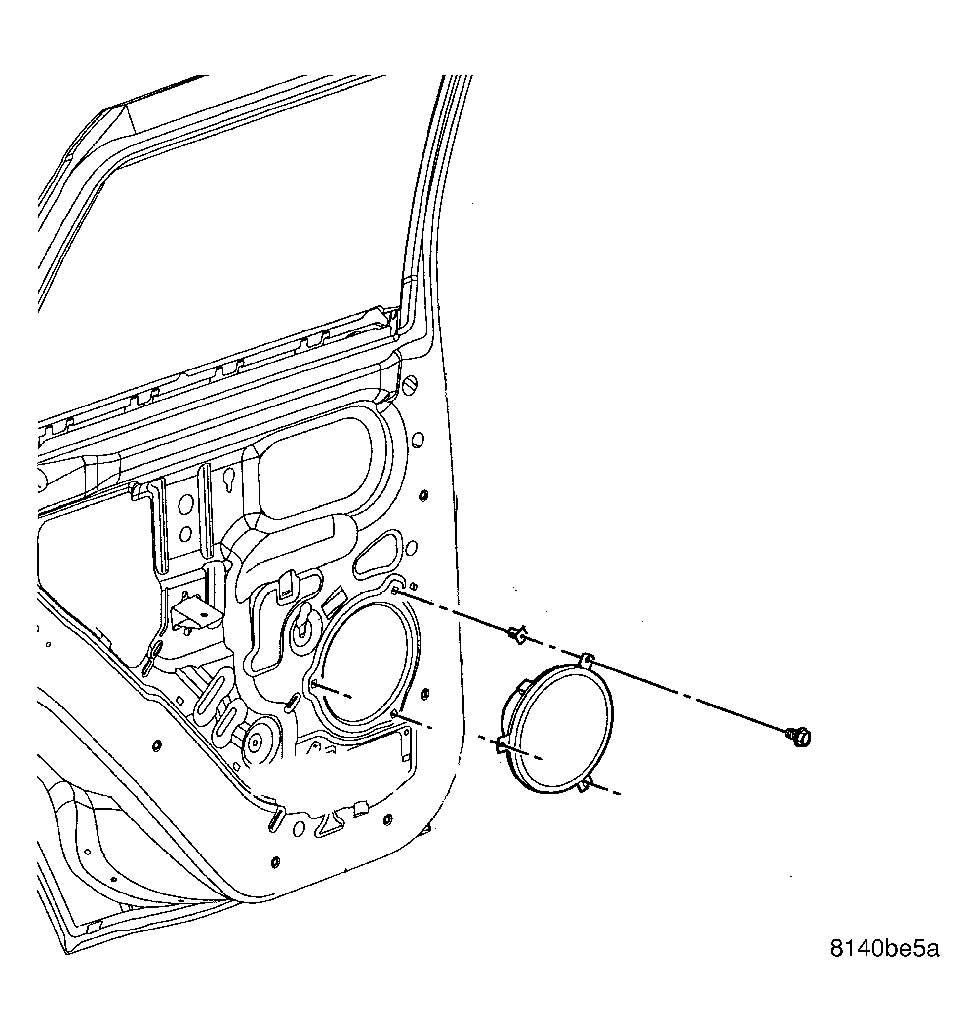

Fig 1: Removing/Installing Rear Door Speaker
GC0028996Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove rear door trim panel (Refer to BODY/DOORS - REAR/TRIM PANEL - REMOVAL) .
  3. Remove mounting fasteners.

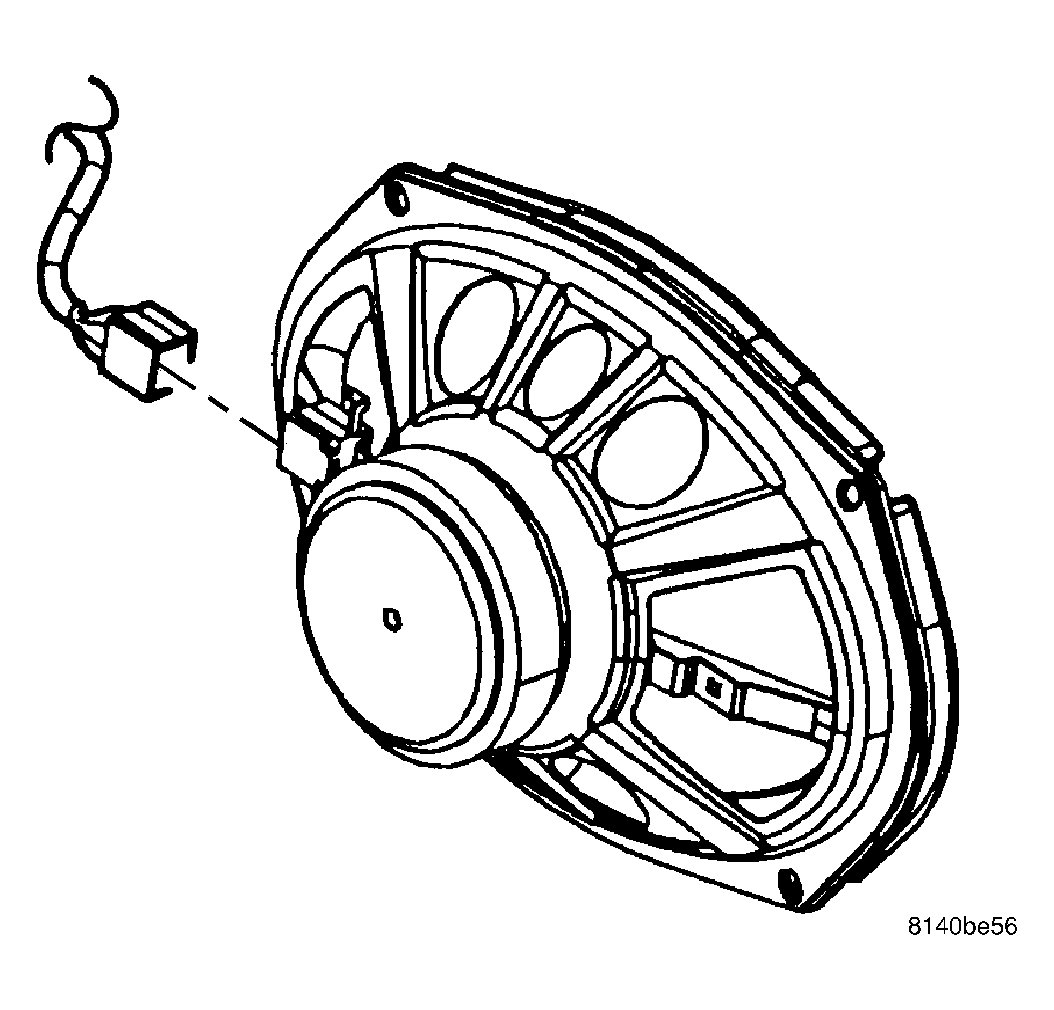

    Fig 2: Disconnecting/Connecting Speaker Wire Harness Connector
    GC0028994Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove speaker from door.
  5. Disconnect wire harness connector from speaker.
