Front Door

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

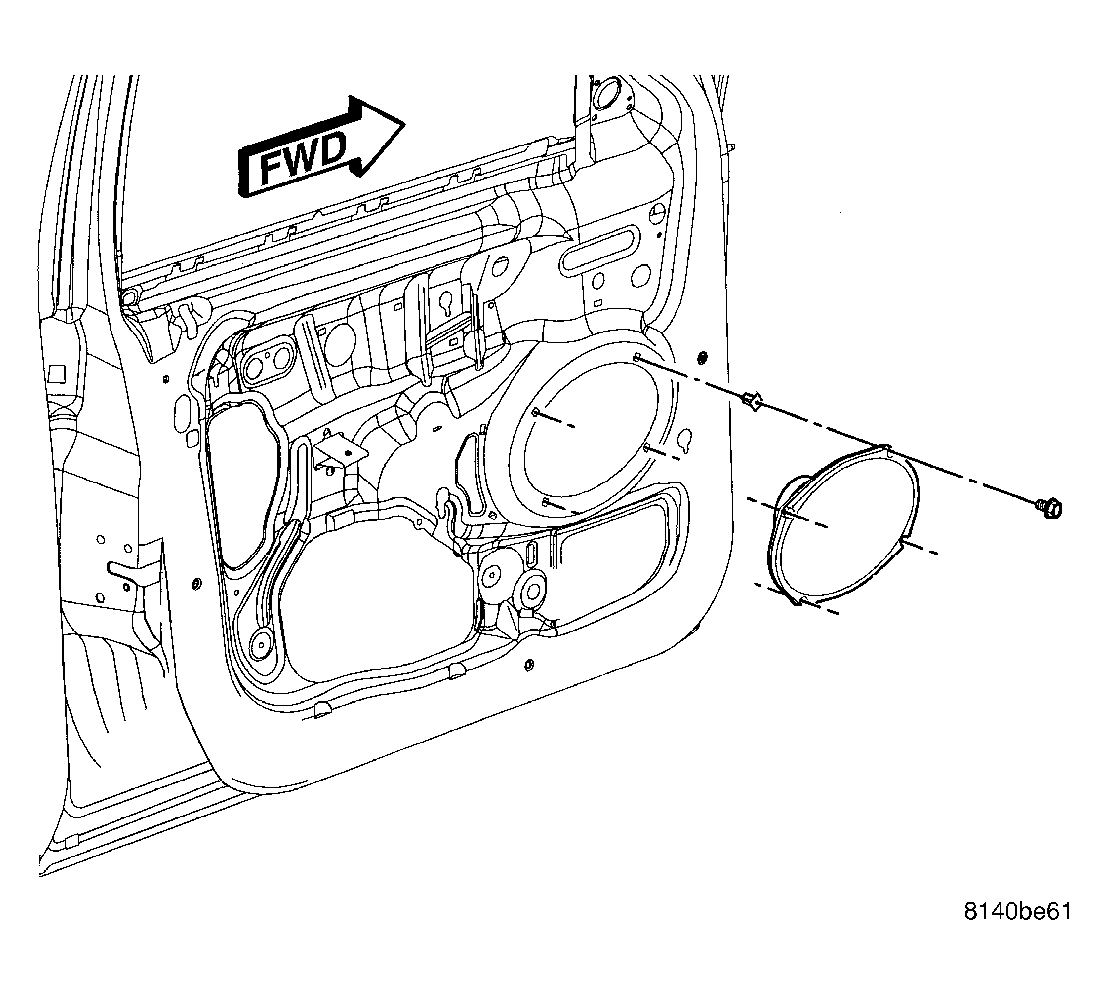

Fig 1: Identifying Front Door Speaker
GC0028997Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove front door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
  3. Remove mounting fasteners.
    Fig 2: Disconnecting/Connecting Speaker Wire Harness Connector
    GC0028994Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove speaker from door.
  5. Disconnect wire harness connector from speaker.
