Front Door

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

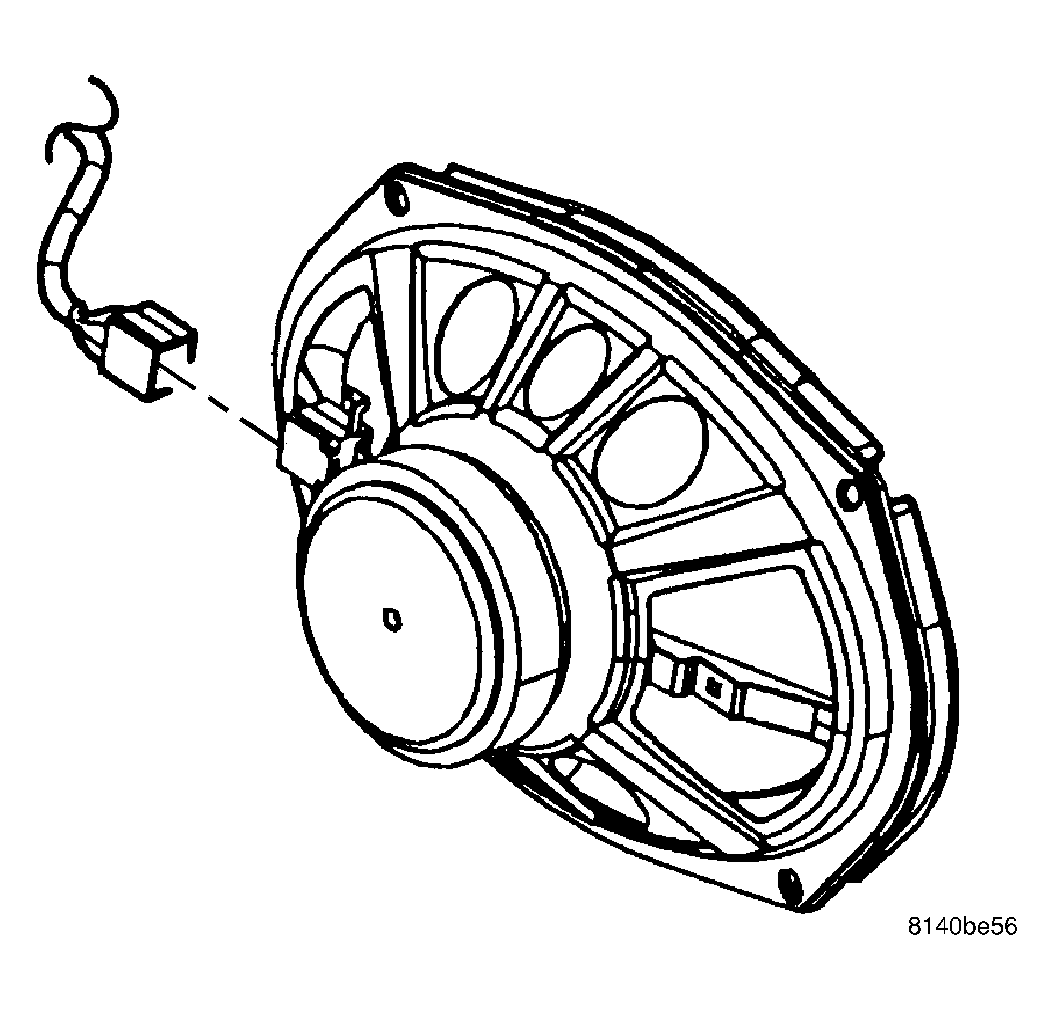

Fig 1: Disconnecting/Connecting Speaker Wire Harness Connector

Courtesy of DAIMLERCHRYSLER CORP.

Connect wire harness connector to speaker.
Position speaker to door.

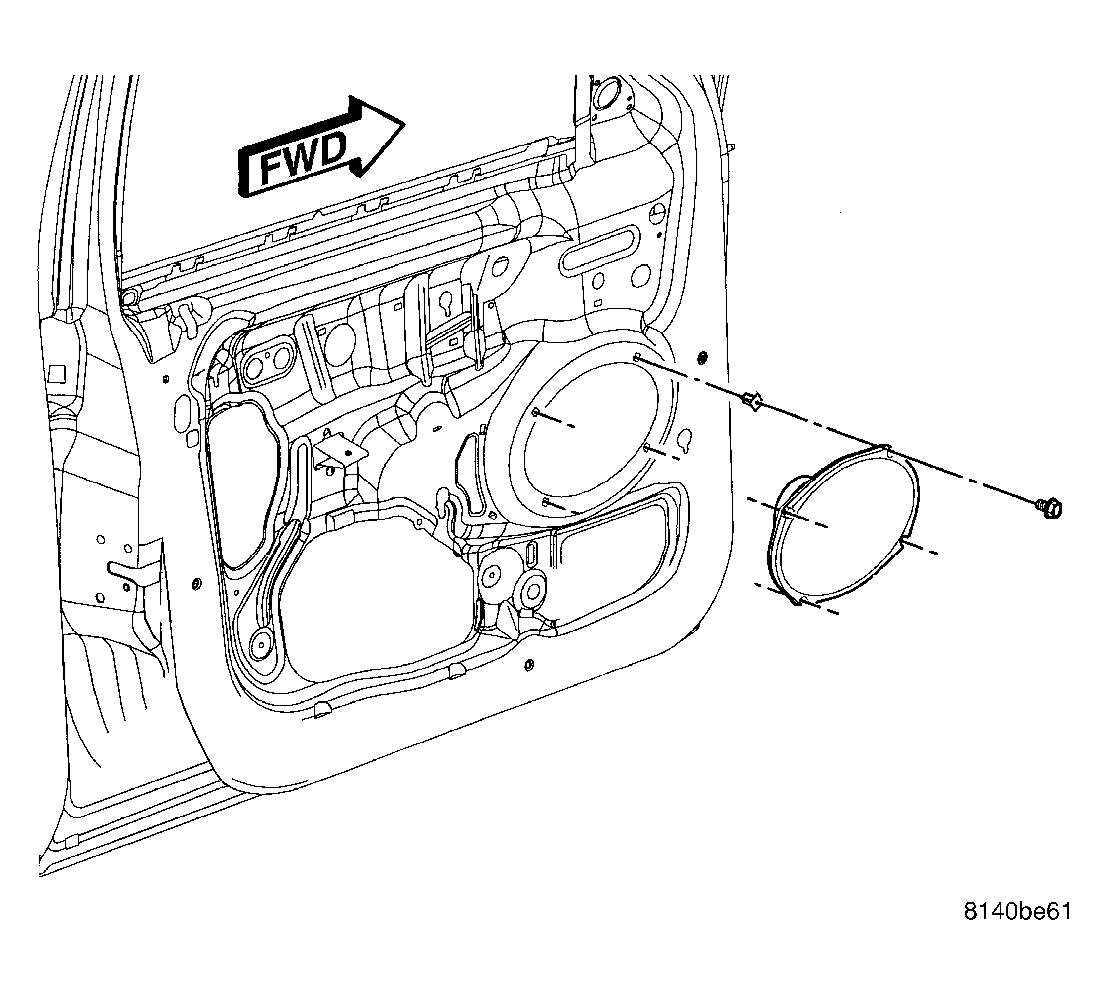

Fig 2: Removing/Installing Front Door Speaker
Courtesy of DAIMLERCHRYSLER CORP.
Install and tighten mounting fasteners.
Install front door trim panel.
Connect battery negative cable.
