Section 592 (Audio System & Video System (Service Information)): Receiver-Satellite: Description

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

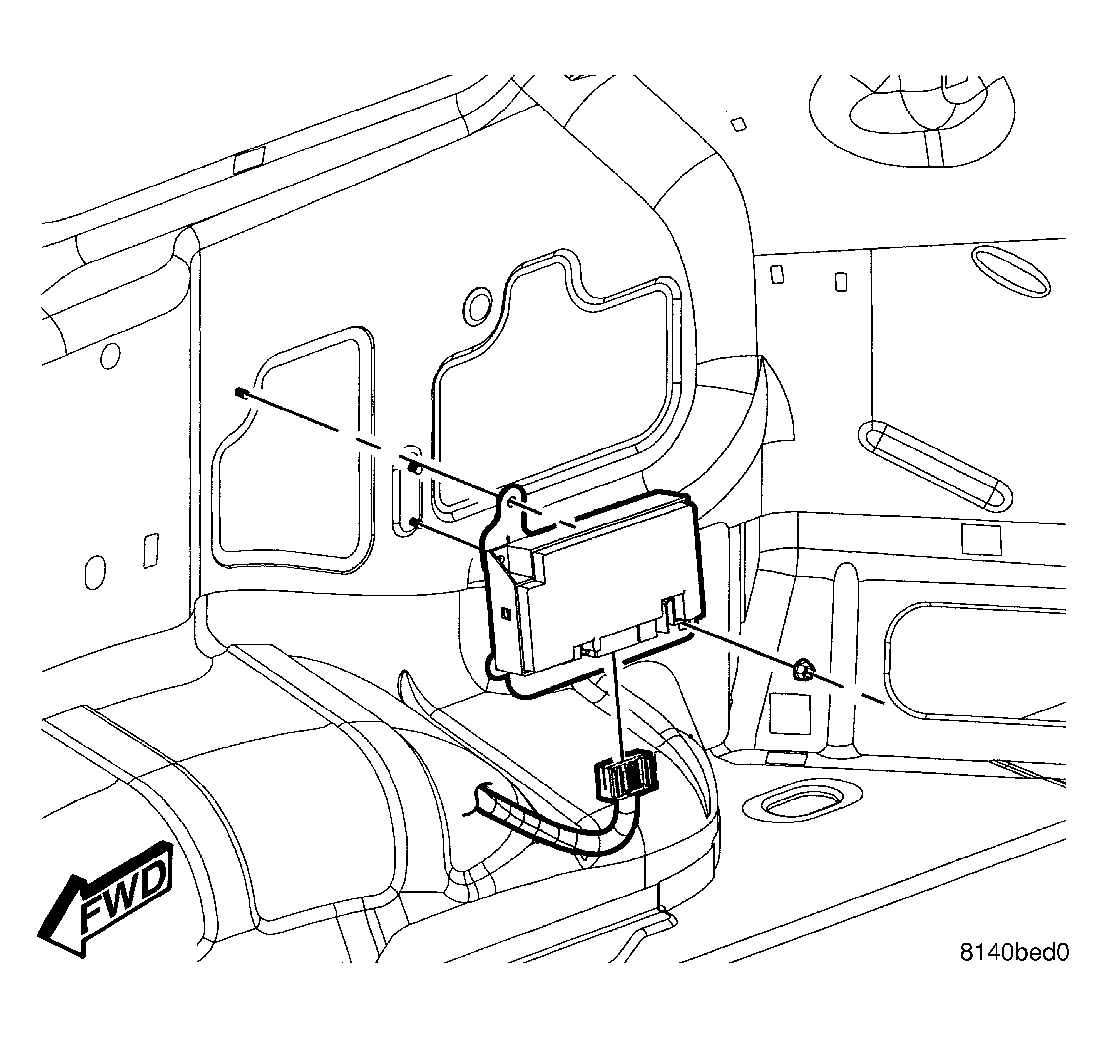

Fig 1: Identifying Satellite Receiver

Courtesy of DAIMLERCHRYSLER CORP.

The satellite receiver is located in the right rear quarter area behind the trim panel. It is secured with three mounting fasteners.
