Exhaust To Frame

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

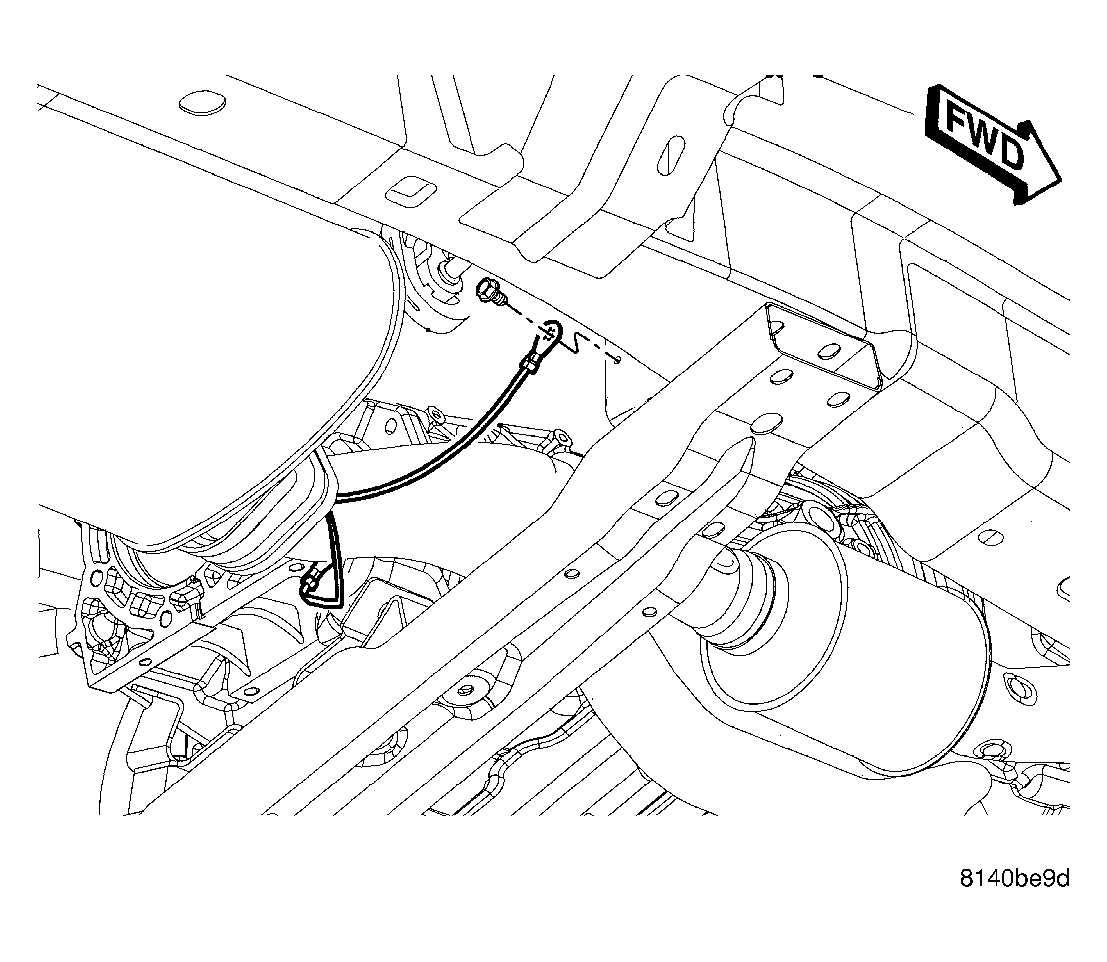

Fig 1: Identifying Battery Negative Cable
GC0028979Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove mounting fastener from exhaust pipe.
  3. Remove mounting fastener from frame and remove cable.
