Engine To Bulkhead - 4.7L

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Battery Negative Cable
GC0028981Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove mounting fasteners from engine cylinder heads.

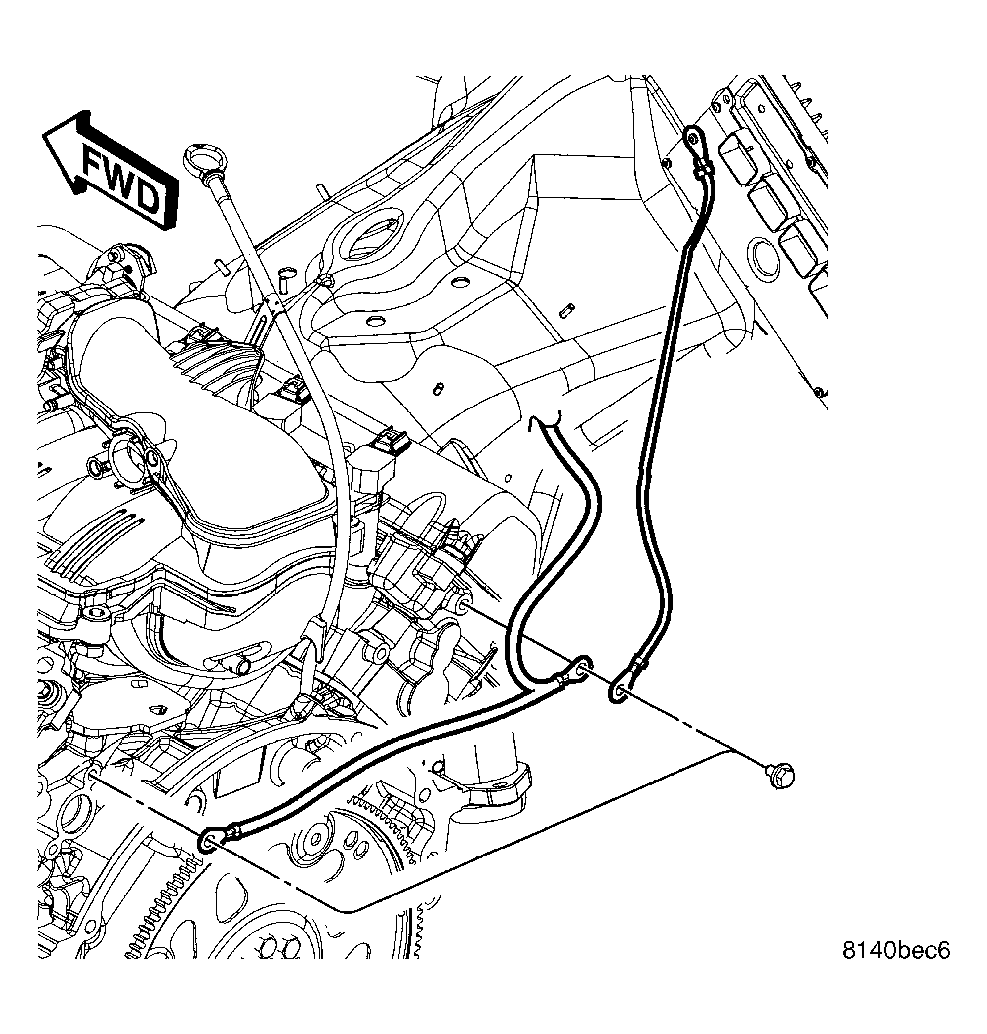

    Fig 2: Identifying Mounting Fastener & Cable
    GC0028982Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove mounting fastener from bulkhead and remove cable.
