Exhaust To Frame

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

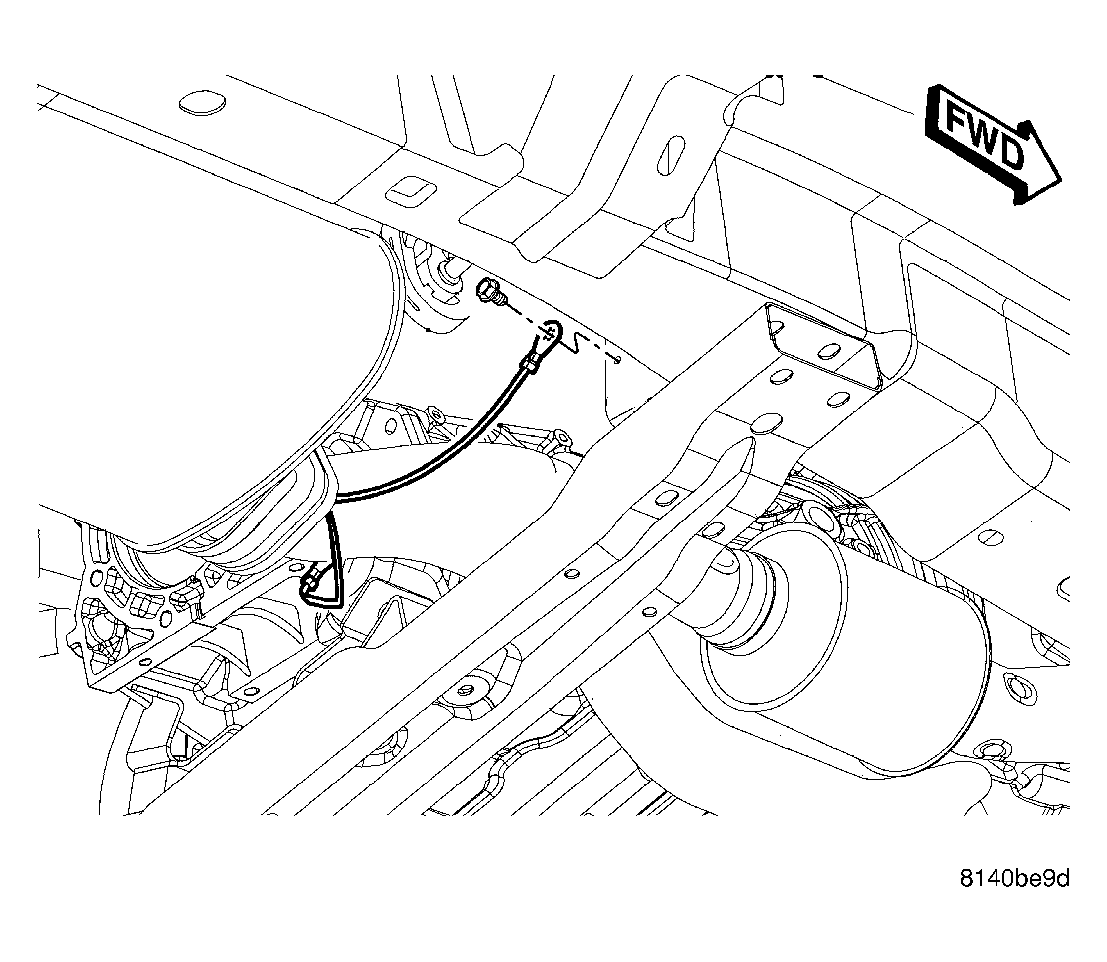

Fig 1: Identifying Battery Negative Cable
GC0028983Courtesy of DAIMLERCHRYSLER CORP.
  1. Position cable to exhaust pipe
  2. Install and tighten mounting fastener to exhaust pipe.
  3. Position cable to frame.
  4. Install and tighten mounting fastener.
  5. Connect battery negative cable.
