Engine To Bulkhead - 5.7L

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

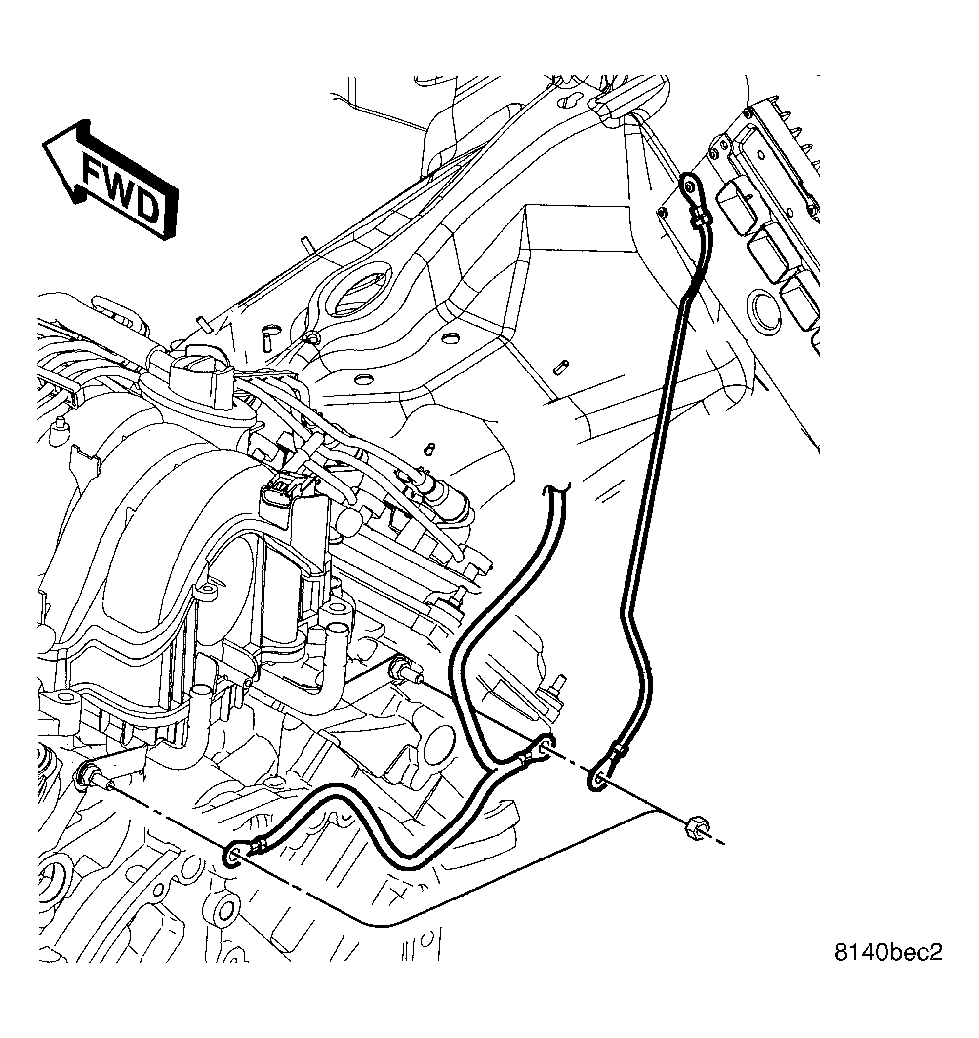

Fig 1: Identifying Battery Negative Cable
GC0028984Courtesy of DAIMLERCHRYSLER CORP.
  1. Position cable to cylinder heads.
  2. Install and tighten mounting fasteners.

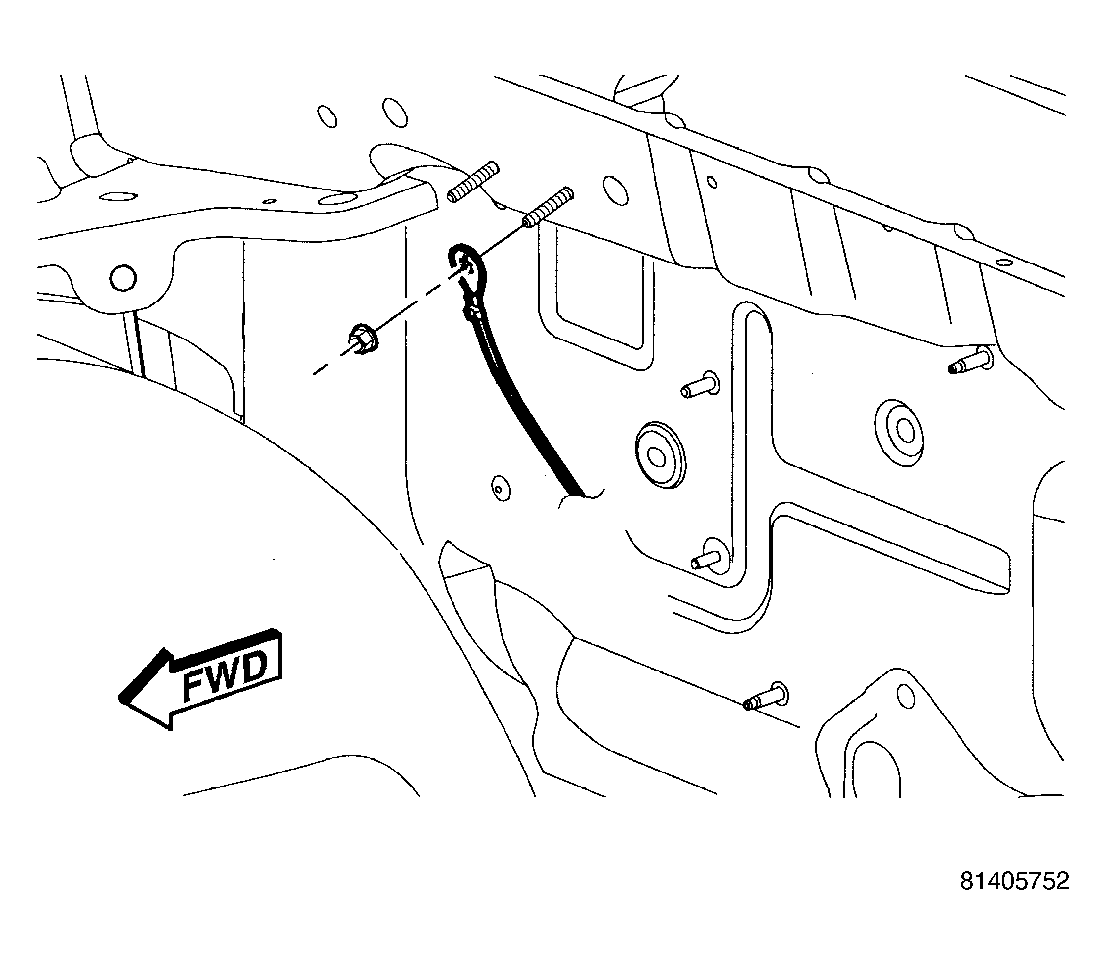

    Fig 2: Identifying Mounting Fastener & Cable
    GC0028982Courtesy of DAIMLERCHRYSLER CORP.
  3. Position cable to bulkhead.
  4. Install and tighten mounting fastener.
  5. Connect battery negative cable.
