Section 592 (Audio System & Video System (Service Information)): Antenna-Satellite: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

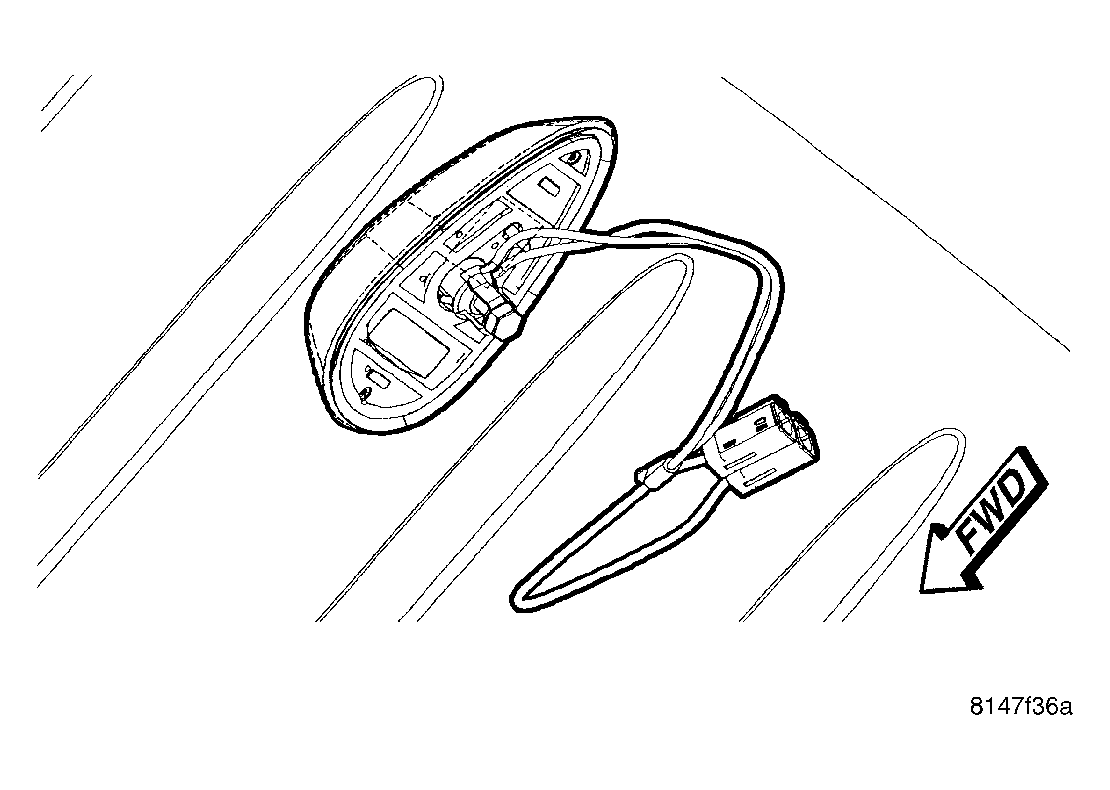

Fig 1: Disconnecting/Connecting Antenna Wire Harness Connectors

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect and isolate the battery negative cable.
Lower the rear portion of the headliner as necessary to access underside of antenna (1) (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
Disconnect the wire harness connectors from the antenna.
Remove fastener and retainer.

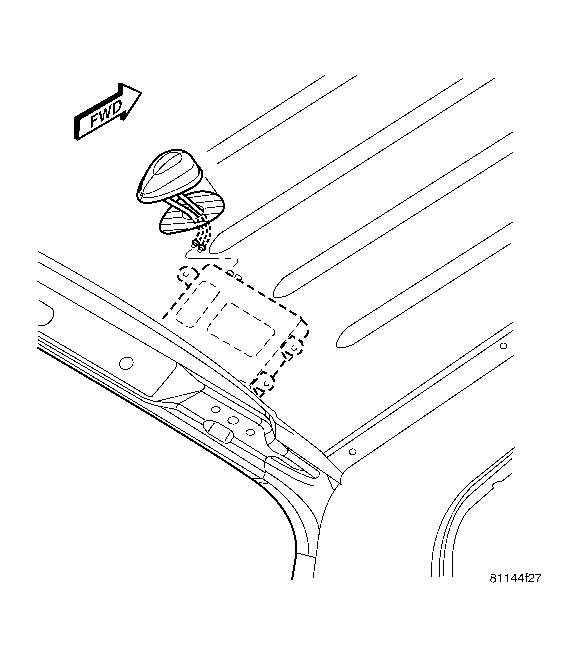

Fig 2: Identifying Satellite Antenna
Courtesy of DAIMLERCHRYSLER CORP.
From inside the vehicle, and using a flat bladed tool, depress one of the retaining tabs on the antenna. Push up the one side of the antenna connector through the roof panel. Depress the other side of the connector and remove the antenna.
