Section 592 (Audio System & Video System (Service Information)): Antenna-Satellite: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

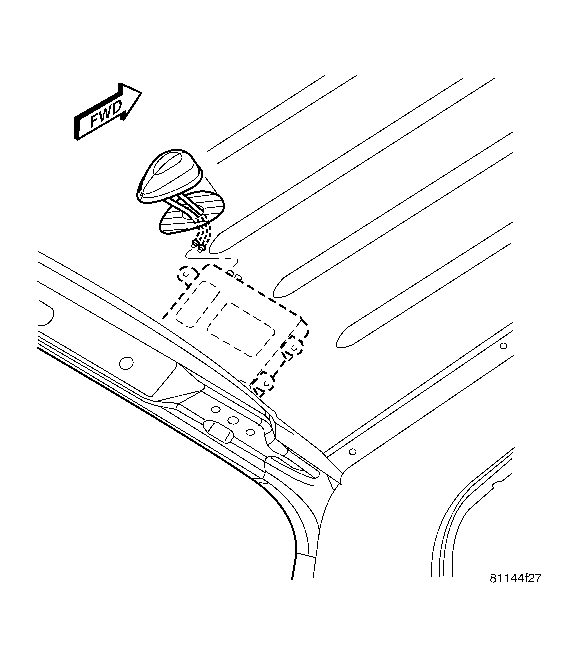

- Insert wire harness through hole in roof panel. Press antenna into position until both retainers snap into place.

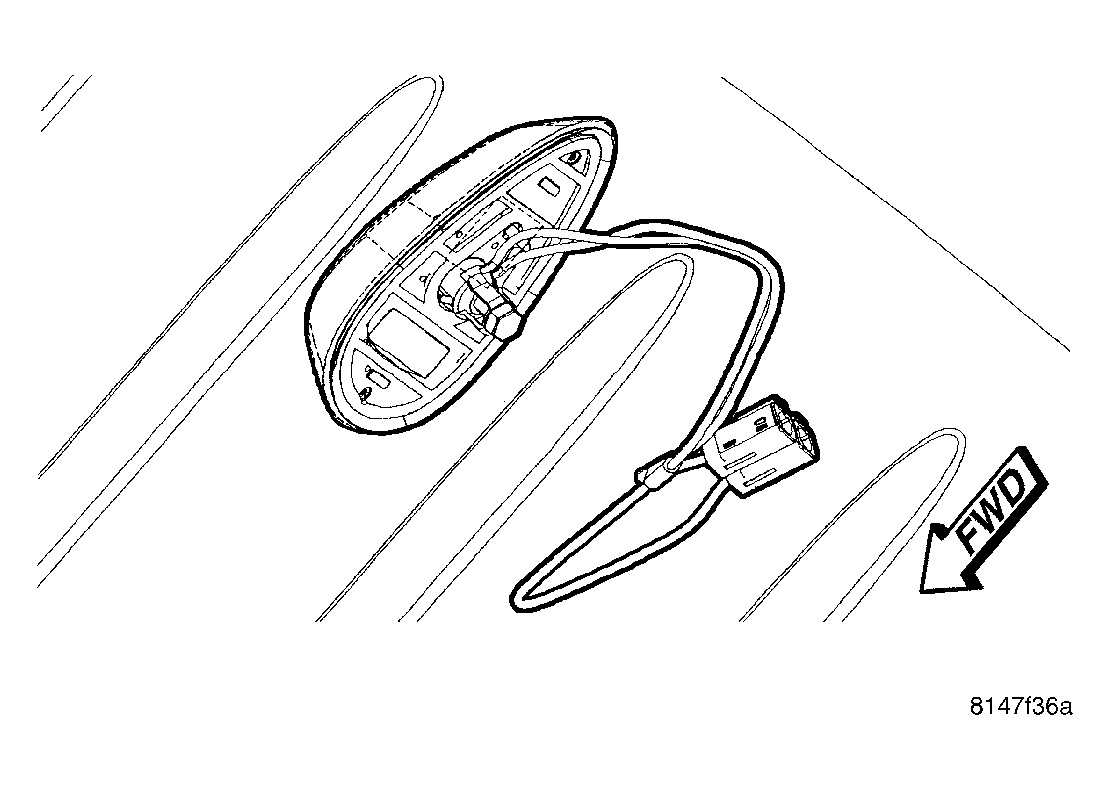

- Connect wire harness connectors to antenna.
- Install and tighten retaining fastener.
- Install headliner (Refer to BODY/INTERIOR/HEADLINER - INSTALLATION) .
- Connect battery negative cable.
