Antenna Cable - Satellite Radio: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

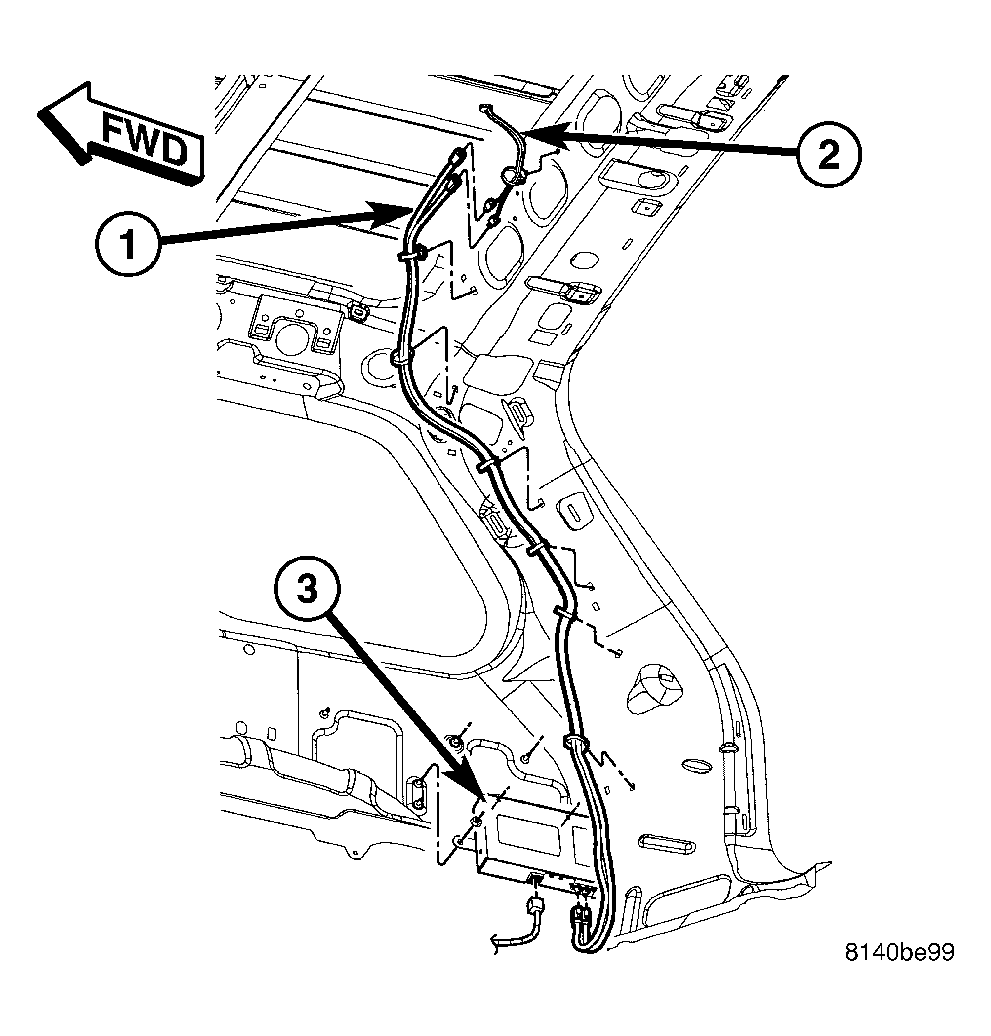

Fig 1: Identifying Satellite Radio Antenna Cable
GC0028959Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery cable.
  2. Remove D-pillar trim.
  3. Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
  4. Disconnect antenna cable (1) from antenna (2).
  5. Remove antenna cable retainers from D-pillar and roof panel.

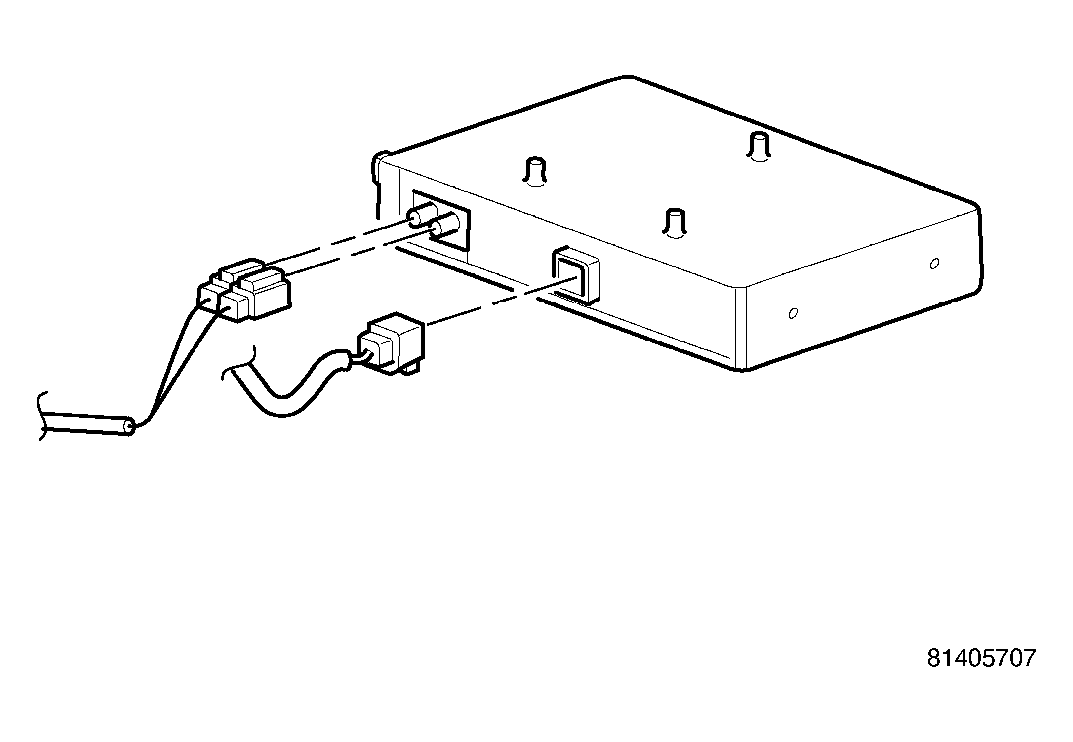

    Fig 2: Disconnecting/Connecting Antenna Cable
    GC0028958Courtesy of DAIMLERCHRYSLER CORP.
  6. Disconnect antenna cable from satellite receiver.
