Antenna Cable - Satellite Radio: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

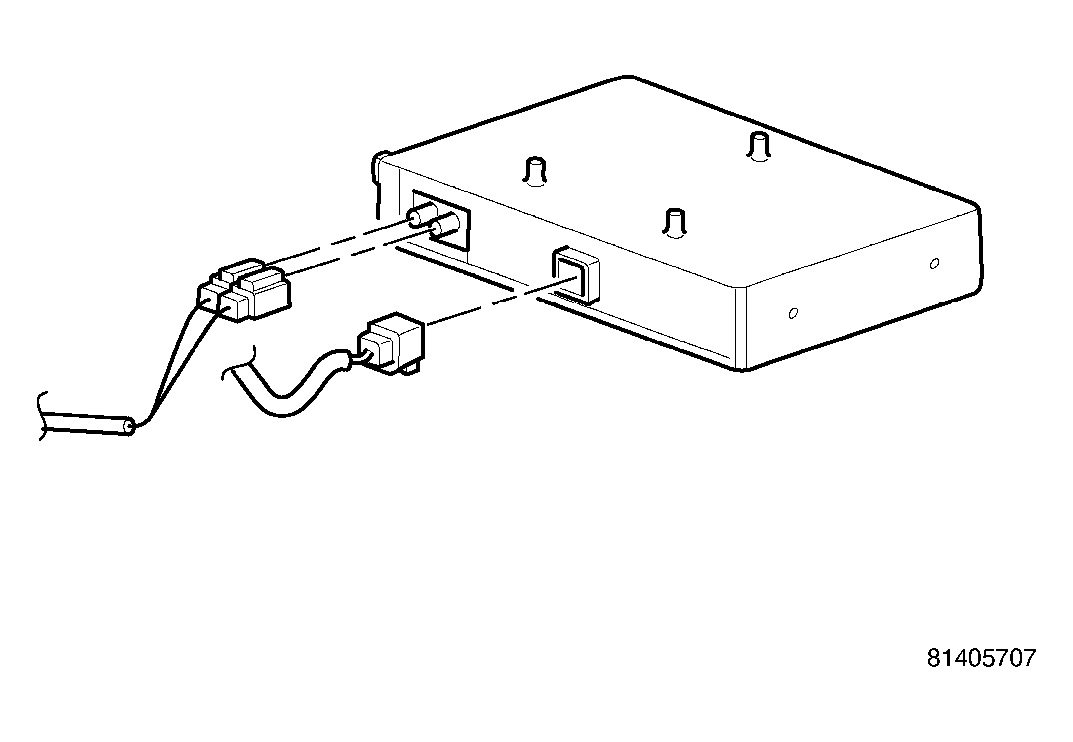

Fig 1: Disconnecting/Connecting Antenna Cable
GC0028960Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect antenna cable to satellite receiver.

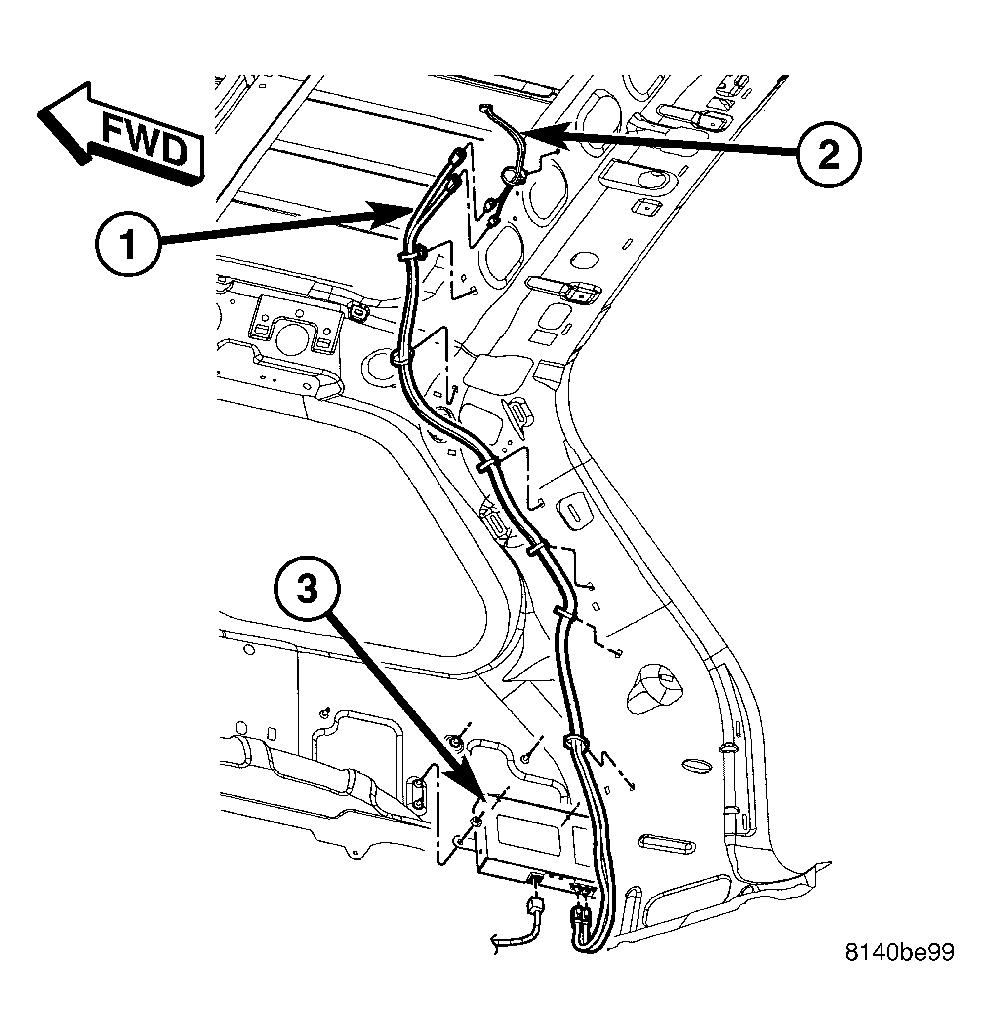

    Fig 2: Identifying Satellite Radio Antenna Cable
    GC0028961Courtesy of DAIMLERCHRYSLER CORP.
  2. Install antenna cable retainers to D-pillar and roof panel.
  3. Connect antenna cable (1) to satellite antenna (2).
  4. Install headliner (Refer to BODY/INTERIOR/HEADLINER - INSTALLATION) .
  5. Install D-pillar trim.
  6. Connect battery negative cable.
