Antenna Cable - Instrument Panel: Installation: Export

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

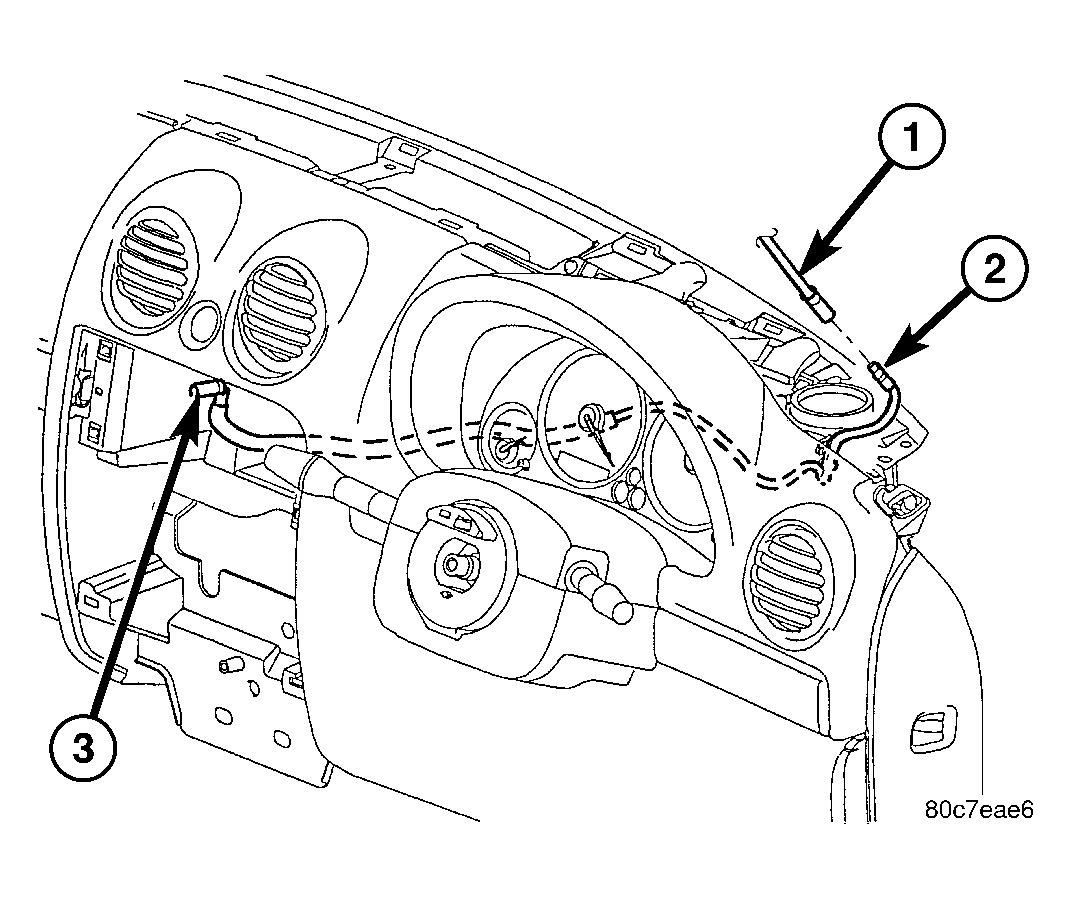

Fig 1: Removing/Installing Instrument Panel Antenna Cable
GC0028957Courtesy of DAIMLERCHRYSLER CORP.
  1. Install instrument panel cable (2) to instrument panel and secure into place.
    Fig 2: Identifying Radio, Locking Antenna Connector & Instrument Panel Cable
    GC0028955Courtesy of DAIMLERCHRYSLER CORP.
  2. Connect instrument panel cable (3) to radio.
  3. Install the instrument panel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION) .
  4. Connect the battery negative cable.
