Antenna Cable - Instrument Panel: Installation: Domestic

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

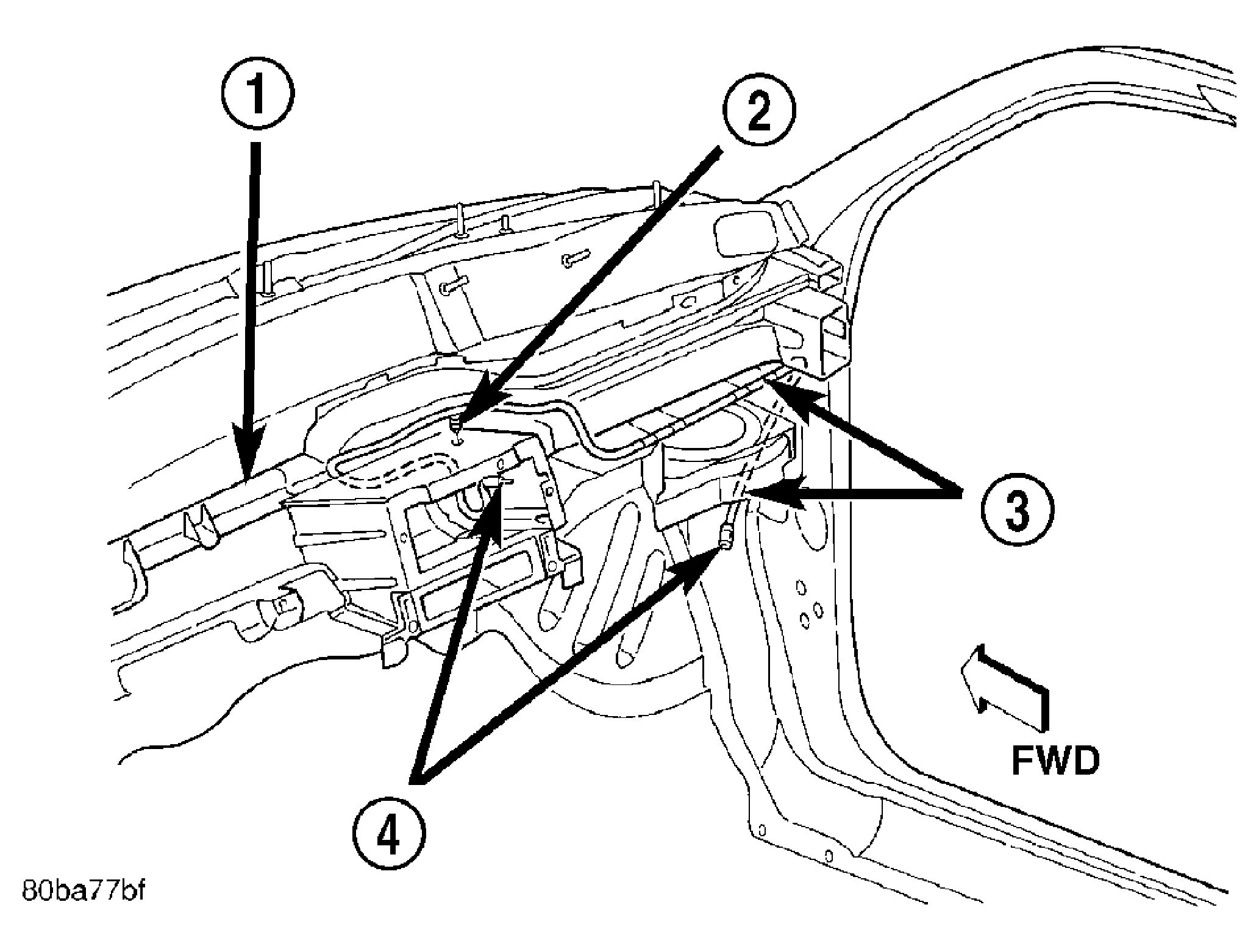

Fig 1: Removing/Installing Antenna Cable
GC0028954Courtesy of DAIMLERCHRYSLER CORP.
  1. Install cable (3) to instrument panel and secure into place.

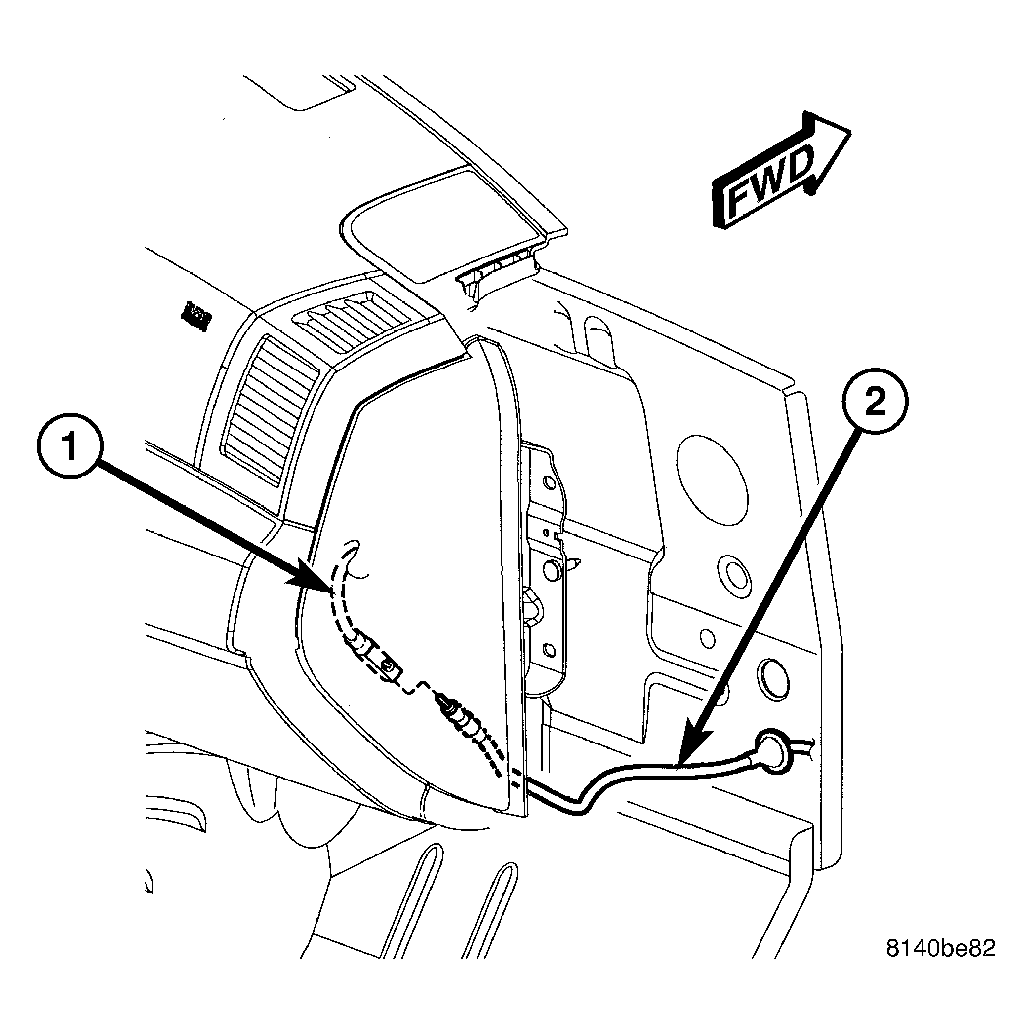

    Fig 2: Identifying Instrument Panel Cable & Antenna Cable
    GC0028956Courtesy of DAIMLERCHRYSLER CORP.
  2. Connect instrument panel cable (1) to antenna body and cable (2).
  3. Install instrument panel side panel.
  4. Install glove box.

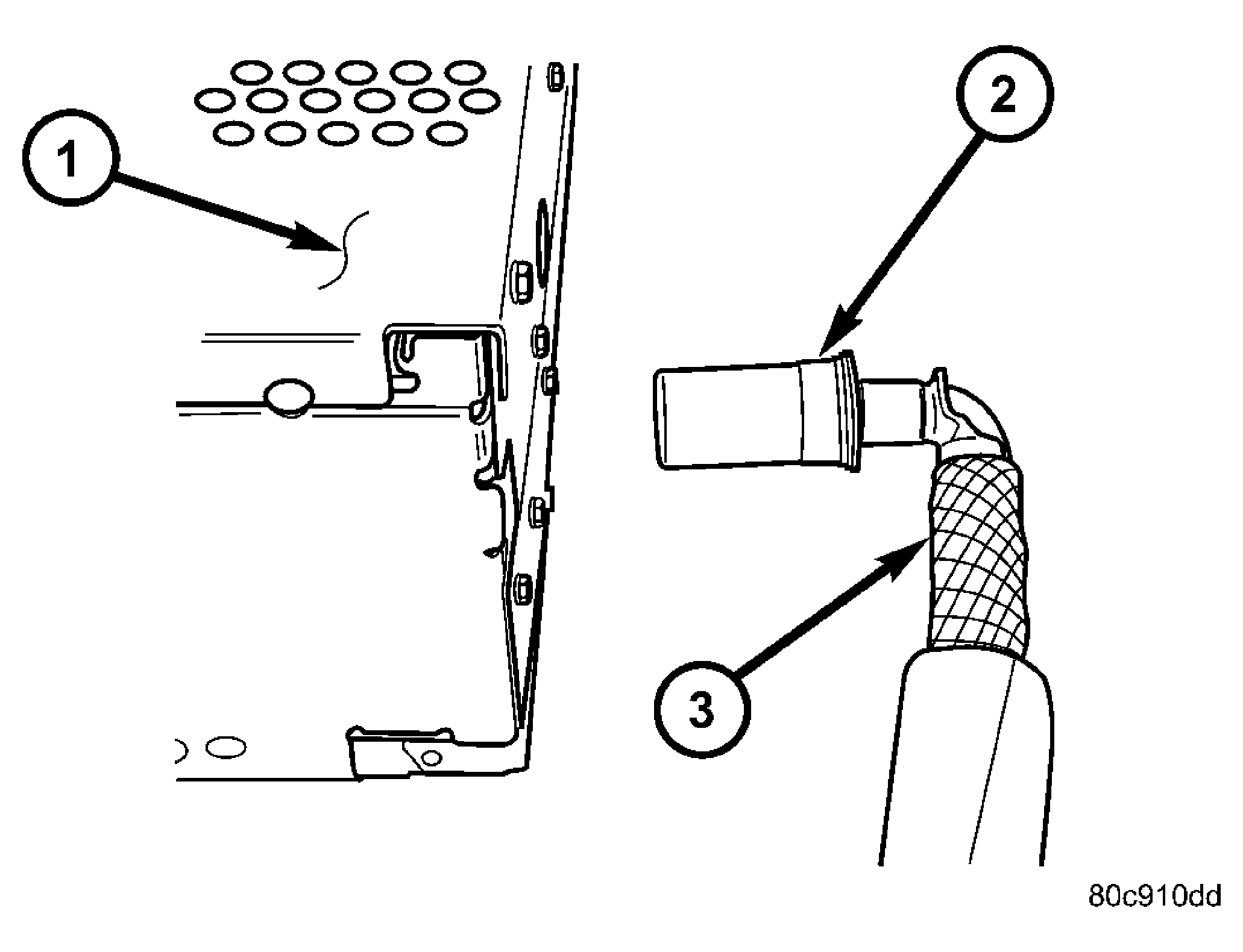

    Fig 3: Identifying Radio, Locking Antenna Connector & Instrument Panel Cable
    GC0028955Courtesy of DAIMLERCHRYSLER CORP.
  5. Connect instrument panel cable (3) to radio (1).
  6. Install radio (Refer to ELECTRICAL/AUDIO/RADIO - INSTALLATION) .
  7. Connect battery negative cable.
