Antenna Body & Cable: Installation: Export

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

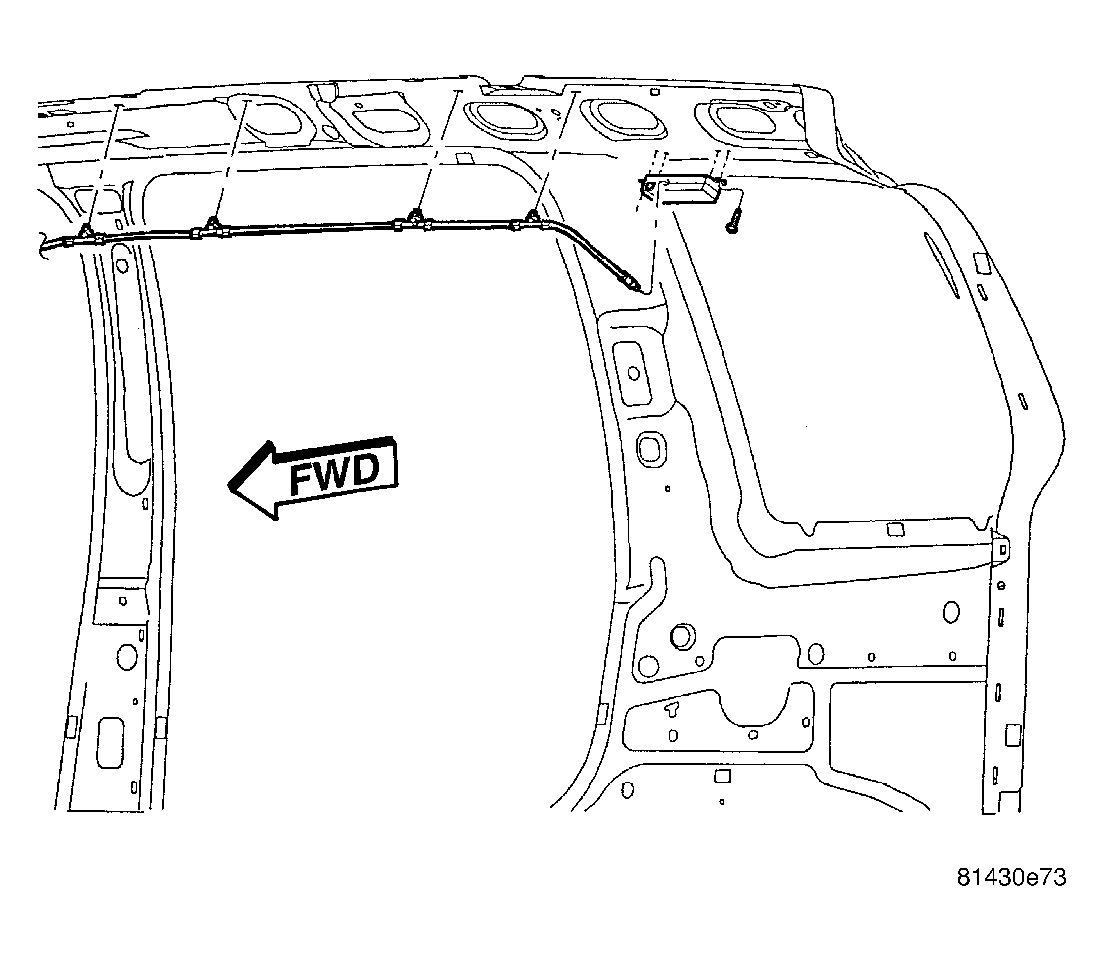

Fig 1: Disconnecting/Connecting Antenna Cable
GC0028950Courtesy of DAIMLERCHRYSLER CORP.
  1. Install antenna cable to the roof panel by pressing retaining clips into position.
  2. Connect antenna cable to the antenna module.

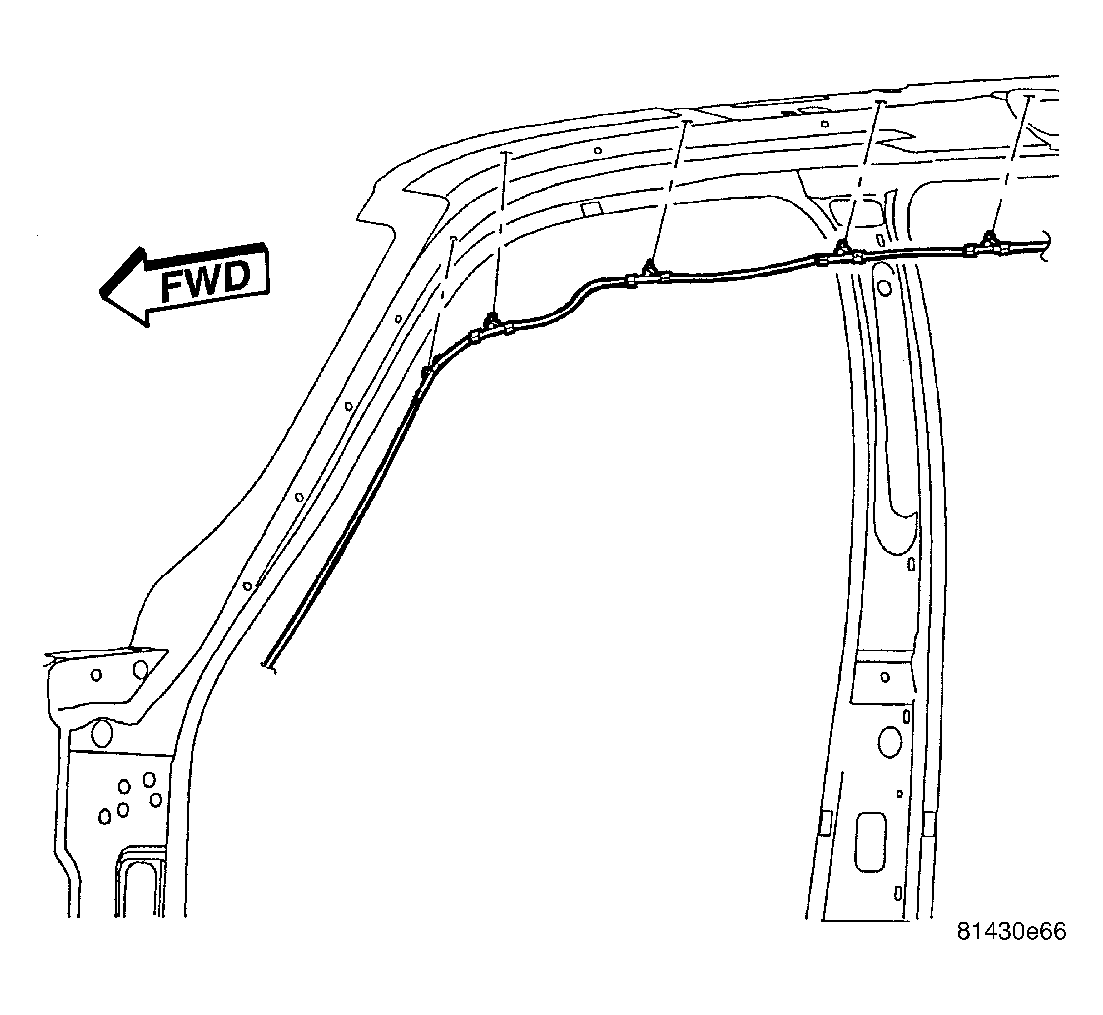

    Fig 2: Identifying Antenna Body & Cable - Export
    GC0028949Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect antenna cable to the instrument panel antenna cable.
  4. Raise headliner into position.
  5. Install A-pillar trim.
  6. Install the right side sunvisor.
  7. Install the assist handles.
  8. Connect the battery negative cable.
