Antenna Body & Cable: Installation: Domestic
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

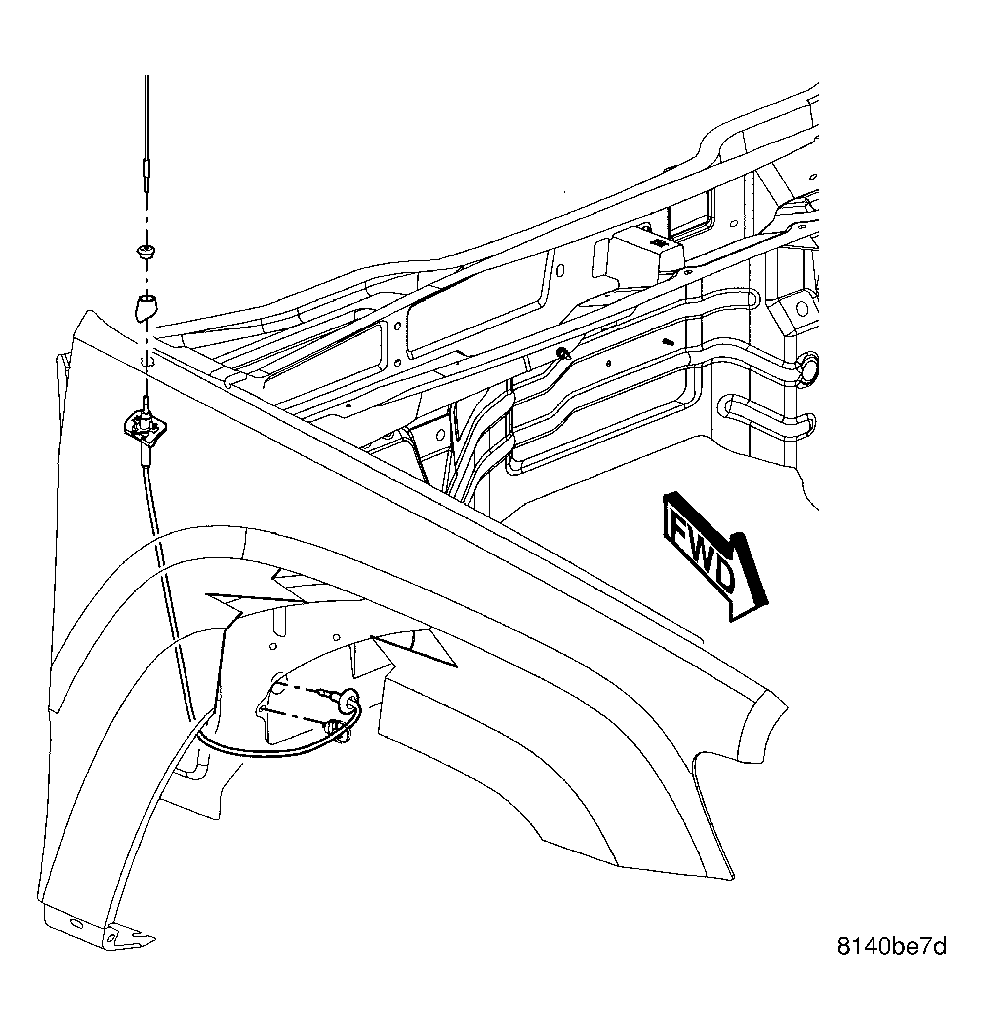

- Position the antenna body and cable in the opening between the right cowl side outer panel and the fender.
- Push the antenna coaxial cable into the passenger compartment through the hole in the right cowl side outer panel.
- Engage the antenna coaxial cable grommet in the hole in the right cowl side outer panel.
- Position the antenna body through the mounting hole in the top of the fender.
- Install the adapter over the antenna body from the top of the fender.
- Install and tighten the antenna cap nut using an antenna nut wrench (Special Tool C-4816).
- Install and tighten the antenna mast onto the antenna body. Ensure that the antenna mast is fully seated on antenna base and that there is no gap between the mast and base.
- Engage the antenna coaxial cable retainers at the right cowl side inner panel and inside the right front fender.
- Engage the antenna coaxial cable in the retainer clips on the lower instrument panel support behind the glovebox.

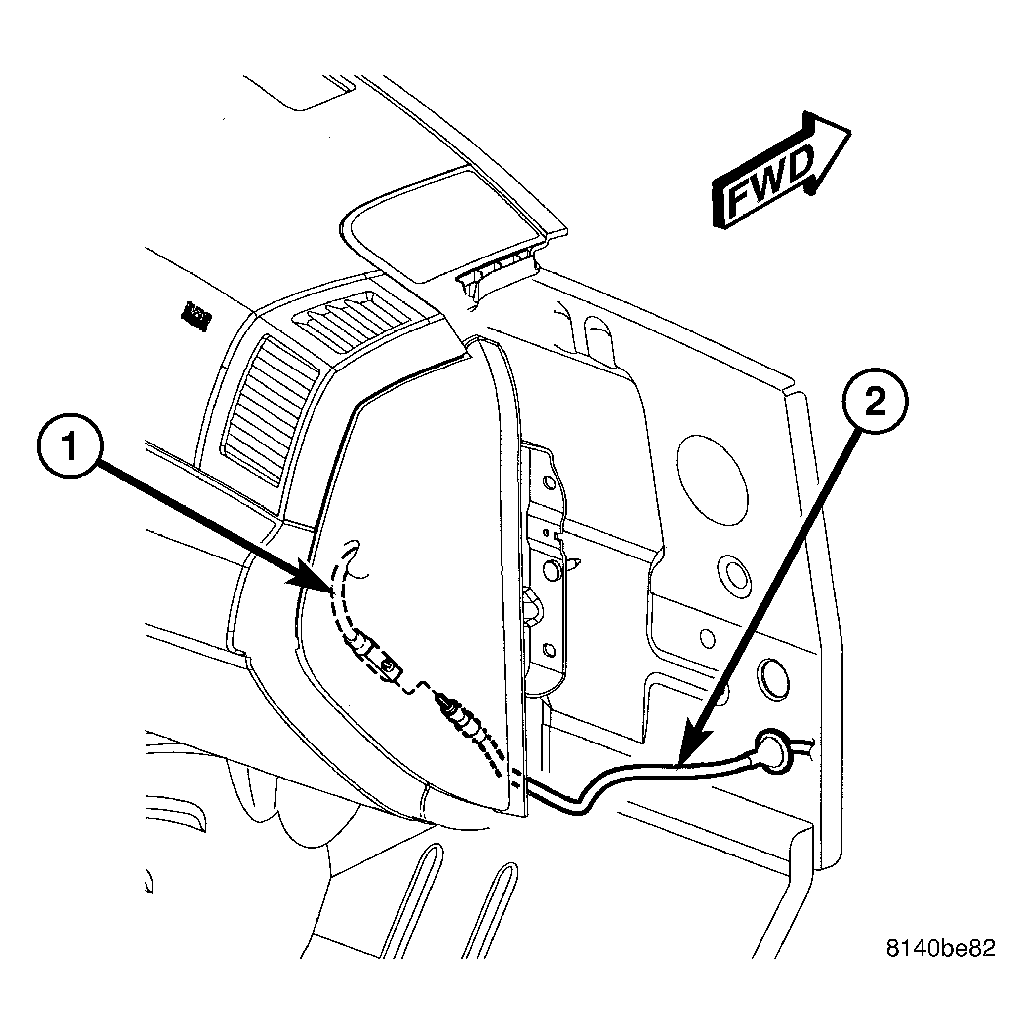

- Reach under the instrument panel outboard of the glove box to connect the antenna cable (2) to the instrument panel antenna cable (1).
- Install the glove box.
- Install the cowl trim cover.
- Install the wheelhouse splash shield.
- Connect the battery negative cable.
