Antenna Body & Cable: Description: Export
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

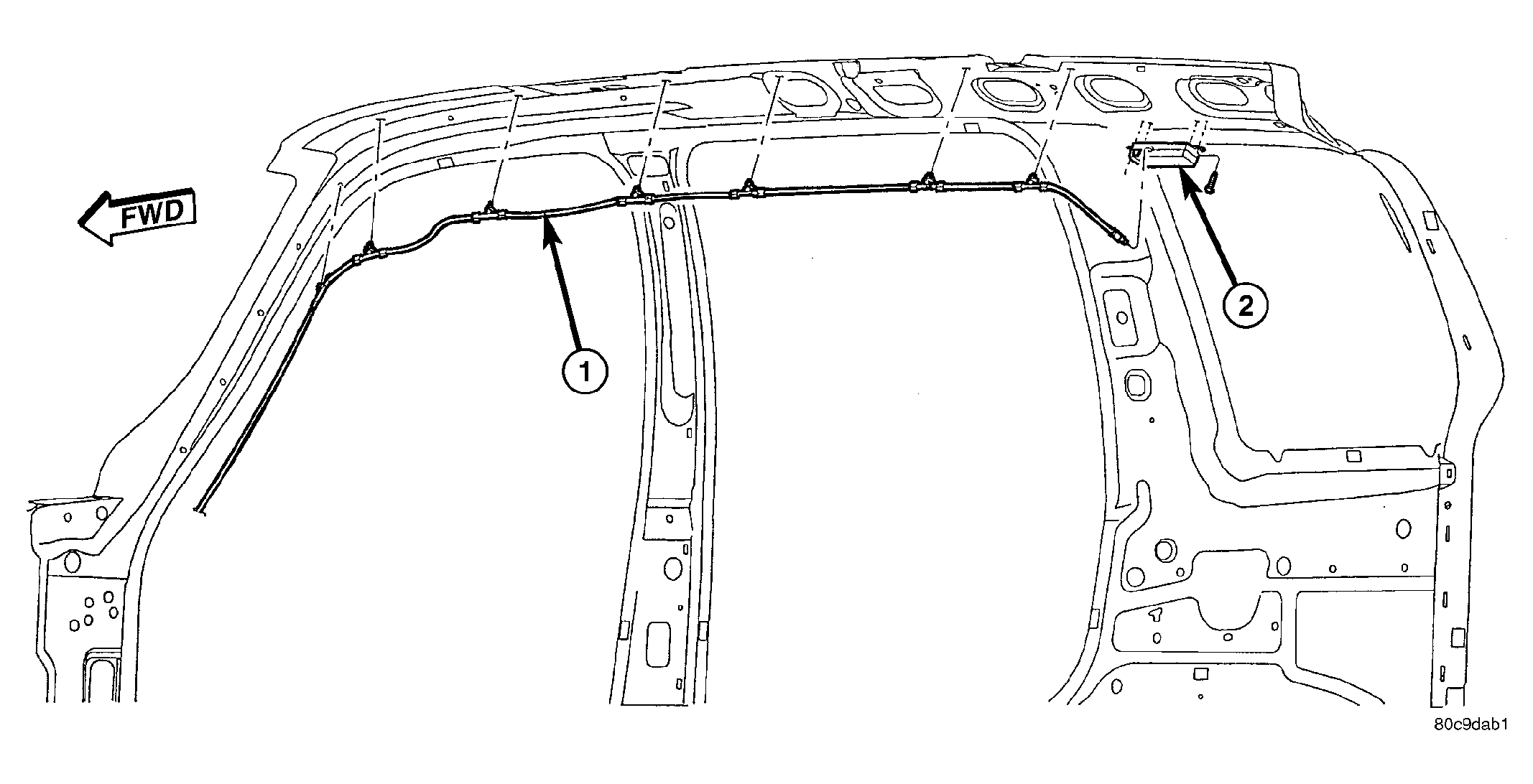

The primary coaxial antenna cable (1) is routed behind the A-pillar trim, up the right side of the roof panel above the headliner. The cable is connected to a secondary instrument panel antenna coaxial cable with an in-line connector that is located behind the A-pillar trim. At the other end, the cable is connected to the antenna module (2). The instrument panel antenna cable is then routed behind the instrument panel to the back of the radio.
