Antenna - Navigation Radio: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

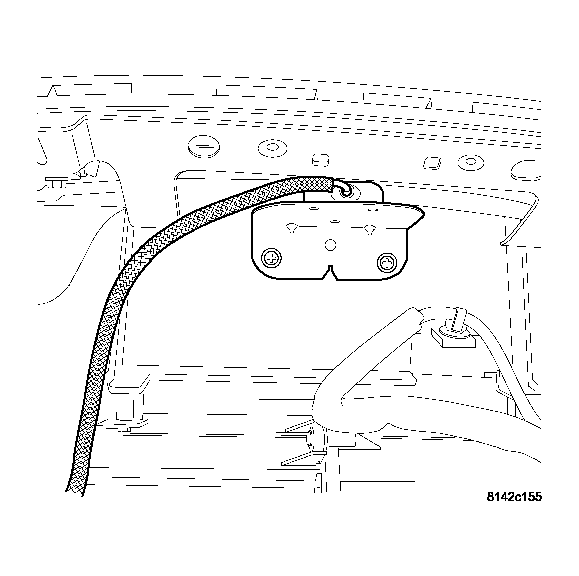

Fig 1: Identifying Navigation Radio Antenna
GC0028962Courtesy of DAIMLERCHRYSLER CORP.
  1. Position antenna to instrument panel.
  2. Install and tighten mounting fasteners.
  3. Install radio (Refer to ELECTRICAL/AUDIO/RADIO - INSTALLATION) .
  4. Connect battery negative cable.
