Tail Lamps: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

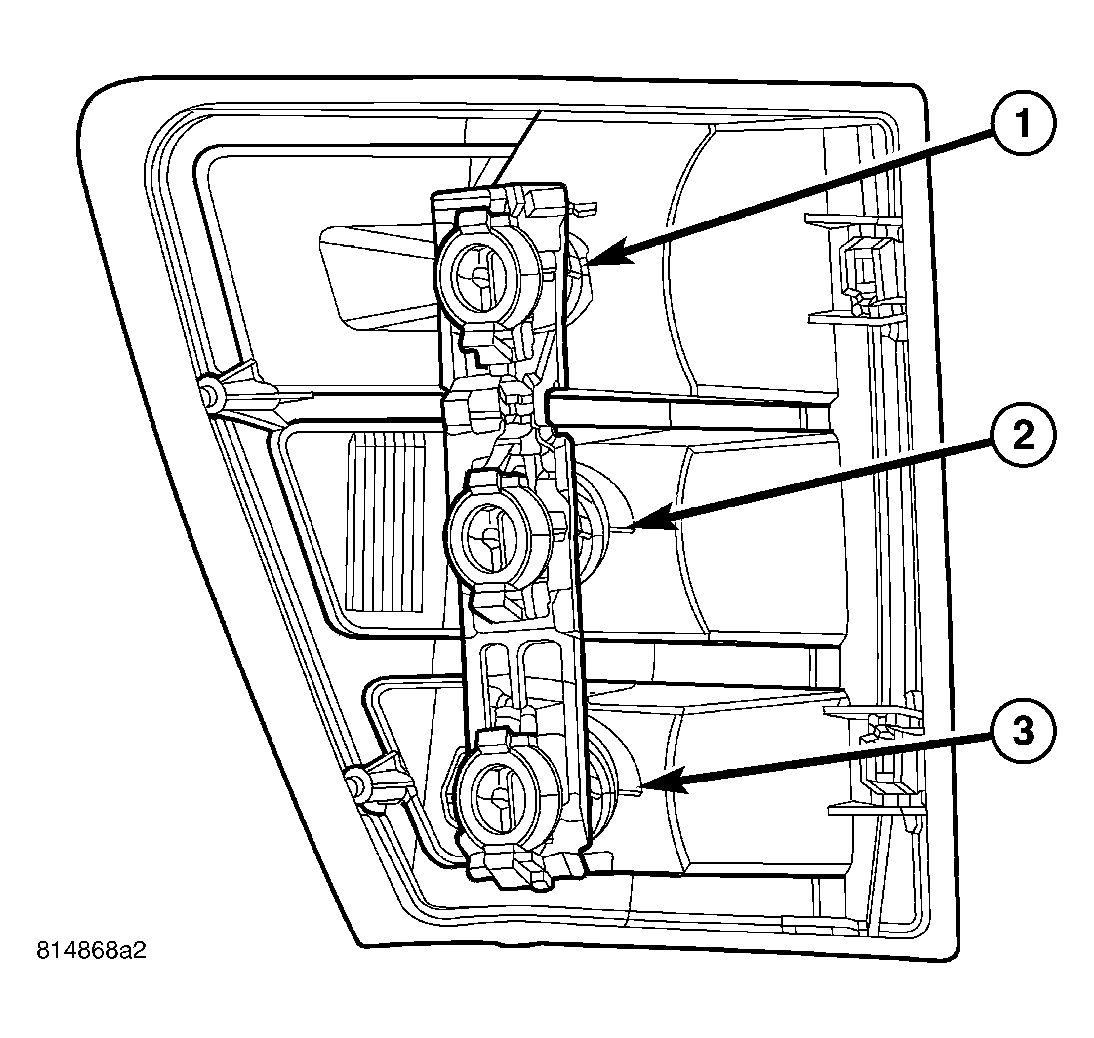

Fig 1: Identifying Stop, Turn Signal & Back-Up Bulbs

Courtesy of DAIMLERCHRYSLER CORP.

The stop (1), turn signal (2), and back-up (3) bulbs are incorporated into the tail lamp unit.

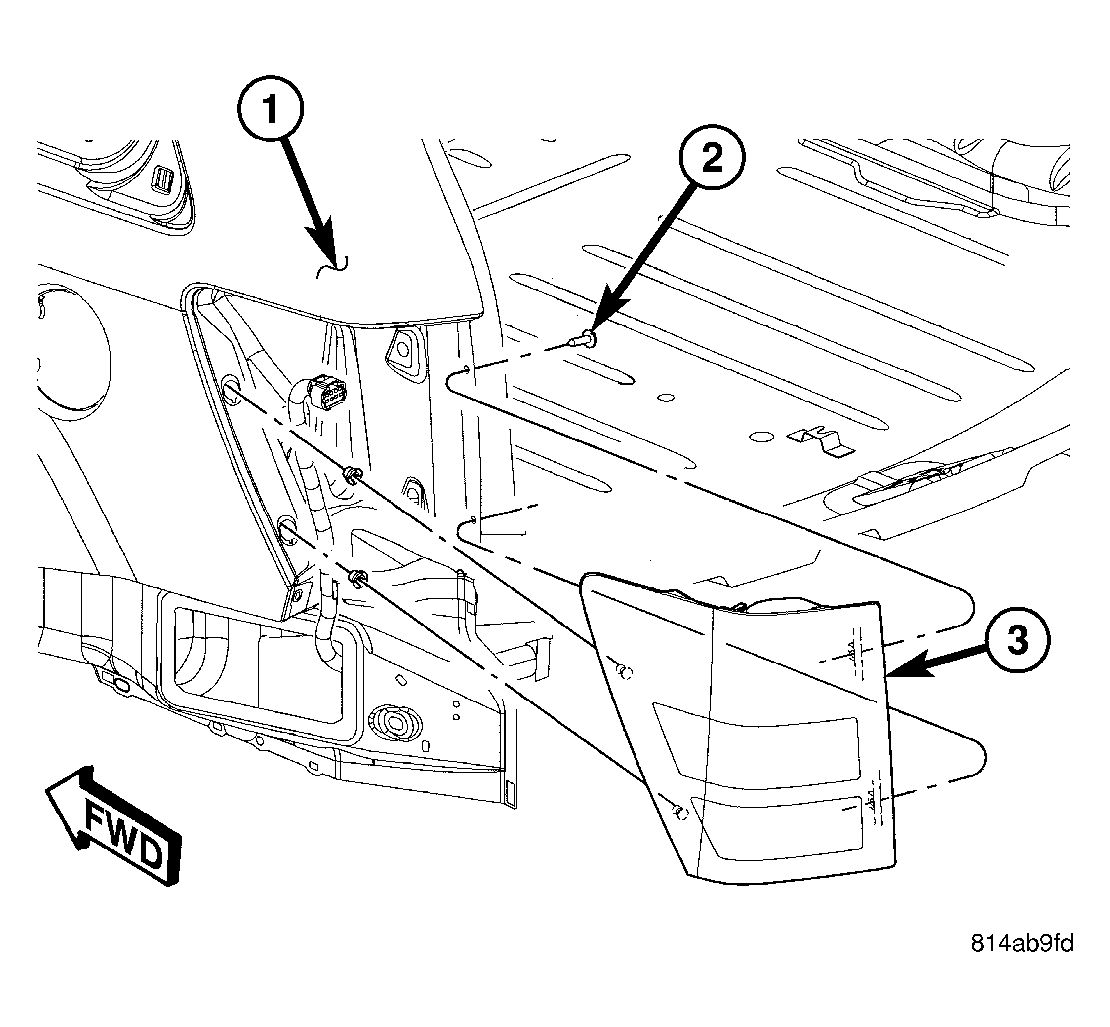

Fig 2: Removing/Installing Tail Lamp Unit

Courtesy of DAIMLERCHRYSLER CORP.

Remove the tail lamp unit (3) (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/TAIL LAMP - REMOVAL) .

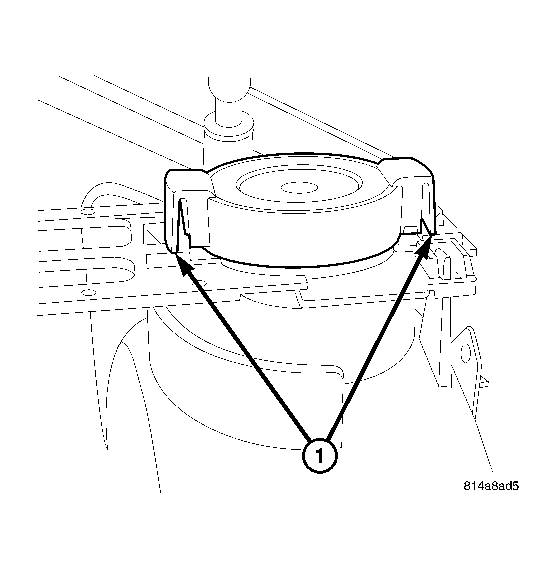

Fig 3: Identifying Retaining Tabs
Courtesy of DAIMLERCHRYSLER CORP.
Compress both retaining tabs (1) on the bulb socket and pull straight out.

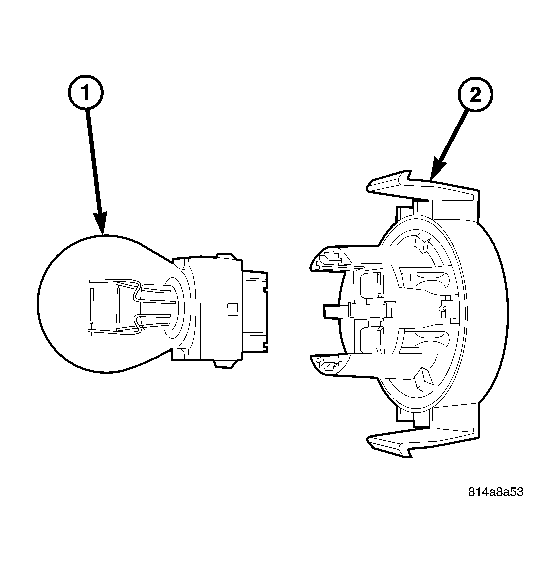

Fig 4: Identifying Bulb & Socket
Courtesy of DAIMLERCHRYSLER CORP.
Remove the bulb (1) from the socket (2).
