Tail Lamp Unit: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

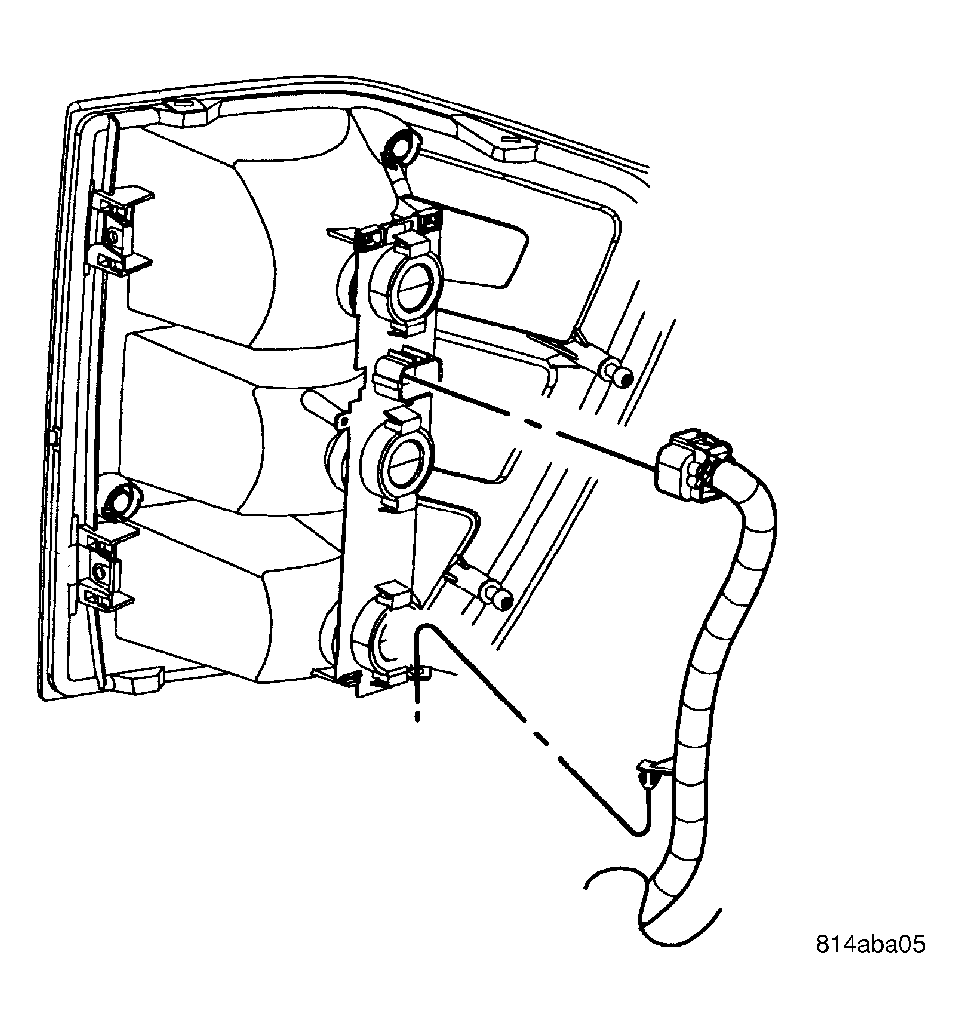

Fig 1: Disconnecting/Connecting Lamp Unit Wire Harness Connector
GC0029265Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect the tail lamp unit wire harness connector.
    Fig 2: Removing/Installing Tail Lamp Unit
    GC0029263Courtesy of DAIMLERCHRYSLER CORP.
  2. Align the pins with the retainers in the vehicle body (1) and press the lamp (3) forward to engage.

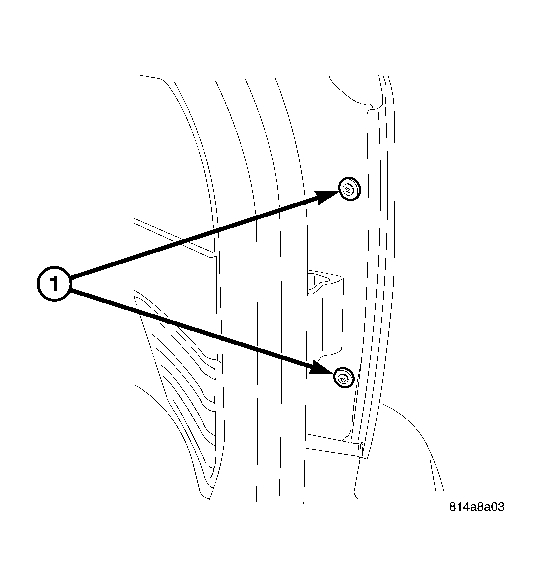

    Fig 3: Identifying Tail Lamp Unit Screws
    GC0029264Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the two screws (1) attaching the tail lamp unit to body.
  4. Connect the battery negative cable.
