Switch-Stop Lamp: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

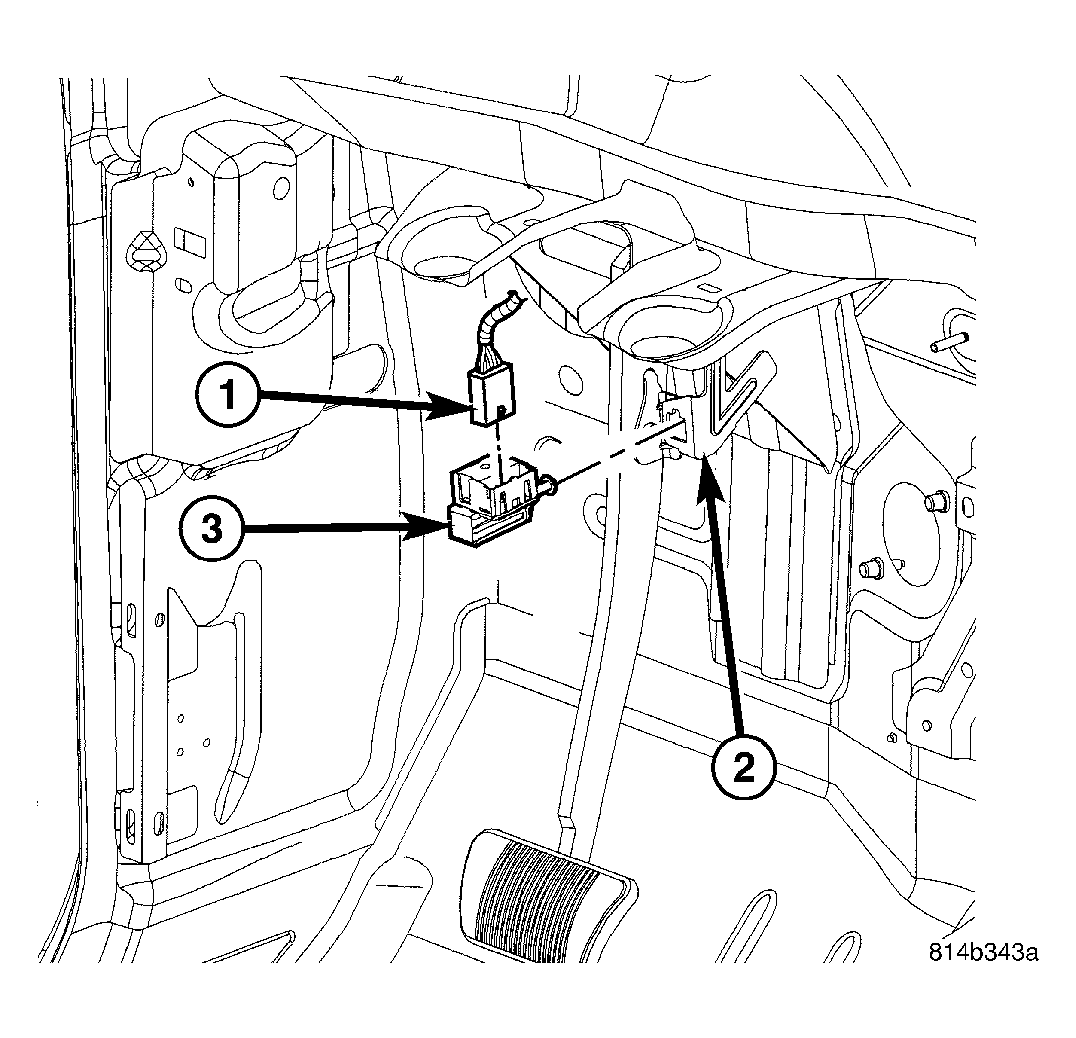

Fig 1: Removing/Installing Stop Lamp Switch
GC0029256Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the steering column cover and lower trim panel.
  3. Press the brake pedal downward to fully applied position.
  4. Rotate the switch approximately 30° in counterclockwise direction to unlock the switch retainer. Pull switch rearward and out of bracket.
  5. Disconnect switch harness and remove switch from vehicle.
