Switch-Stop Lamp: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Pull the switch plunger all the way out to fully extended position.

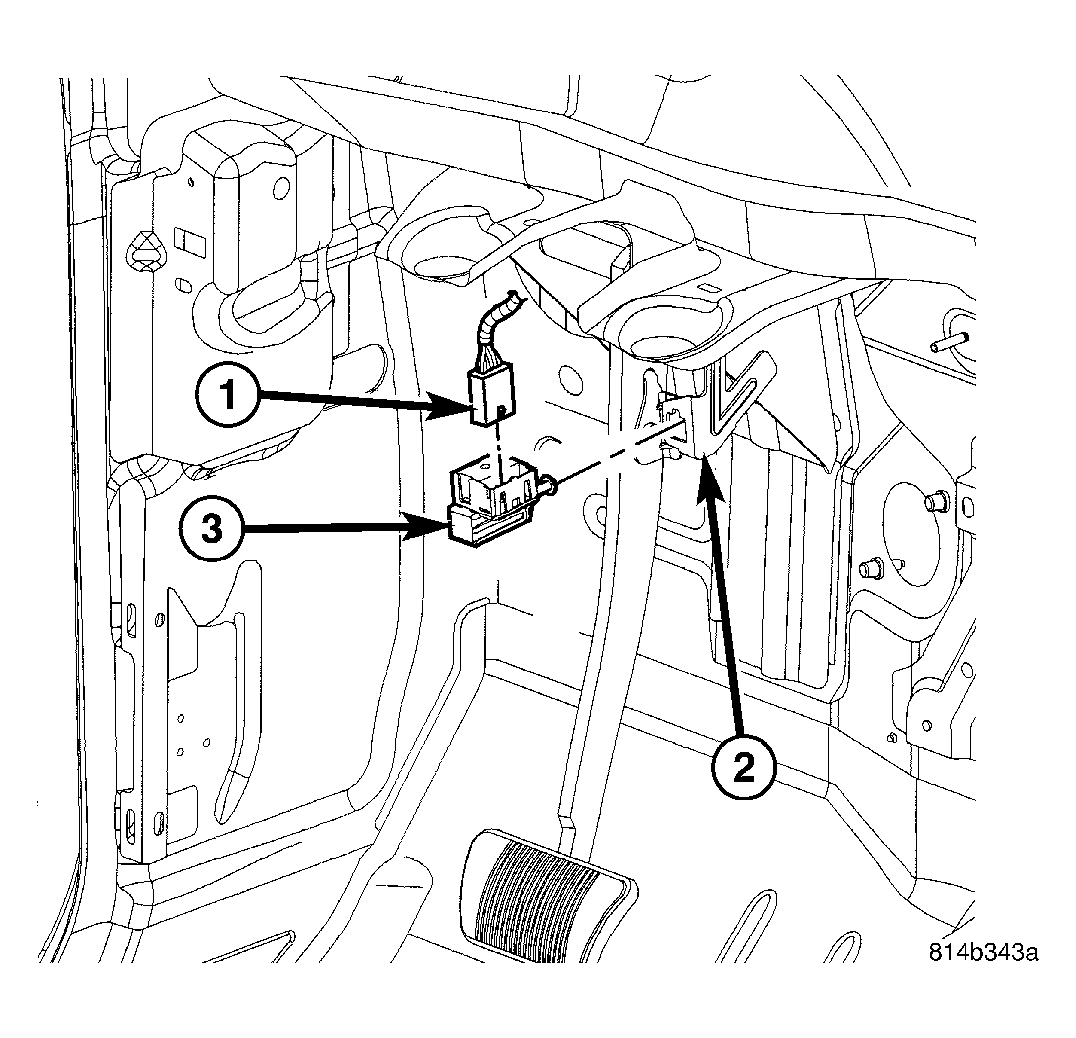

- Connect the harness wires (1) to switch.
- Press and hold brake pedal in applied position.
- Install the switch (3) as follows: Align the tab on the switch with the notch in the switch bracket. Insert the switch in the bracket and turn it clockwise about 30° to lock it in place.
- Release the brake pedal. Then pull the pedal lightly rearward. The pedal will set the plunger to the correct position as the pedal pushes the plunger into switch body. The switch will make ratcheting sound as it self adjusts.
CAUTION:
Booster damage may occur if the pedal pull exceeds 20 lbs.
