Switch-Stop Lamp: Description

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

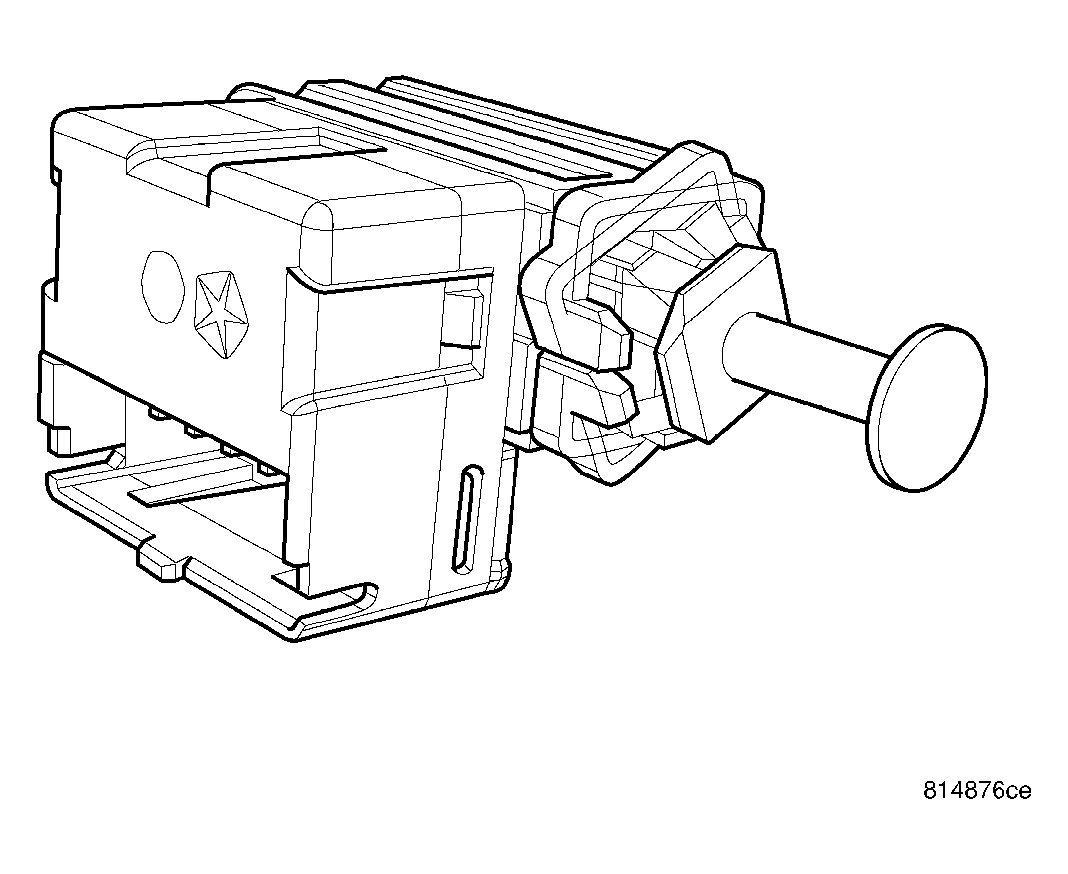

Fig 1: Identifying Stop Lamp Switch
GC0029254Courtesy of DAIMLERCHRYSLER CORP.

The brake lamp switch is mounted on a bracket attached to the brake pedal support. The switch is adjustable.
