Left Multi-Function Switch: Description
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

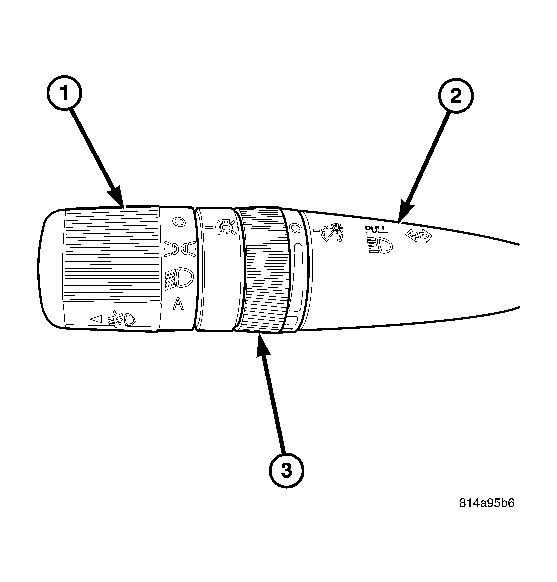

The left multi-function switch, its mounting provisions, and its electrical connections are all concealed beneath the steering column shrouds, just below the steering wheel.
A single connector with eleven terminal pins is integral to the switch housing and connects the switch to the Steering Control Module (SCM).
The left multi-function switch supports the following exterior lighting functions:
- Auto Headlamps
- Front Fog Lamps
- Headlamps
- Headlamp Beam Selection
- Headlamp Optical Horn
- Park Lamps
- Turn Signal Control
The left multi-function switch also supports the following interior lighting functions:
- Interior Lamps Defeat
- Panel Lamps Dimming
- Parade Mode
- Interior Lamps On
The left multi-function switch cannot be adjusted or repaired. If any function of the switch is faulty, or if the switch is damaged, the entire switch unit must be replaced.
