Headlamp Unit: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Headlamp

Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: Do not touch the bulb glass with fingers or other oily surfaces. Reduced bulb life will result.

NOTE: If installing a new headlamp unit, transfer all the wiring, bulbs, and sockets to the new unit.

Install all of the bulb sockets in headlamp (1).
Position the headlamp on the vehicle.
Connect the electrical connector (4).
Push the headlamp inward to secure into position.
Install mounting fasteners (2 & 3).

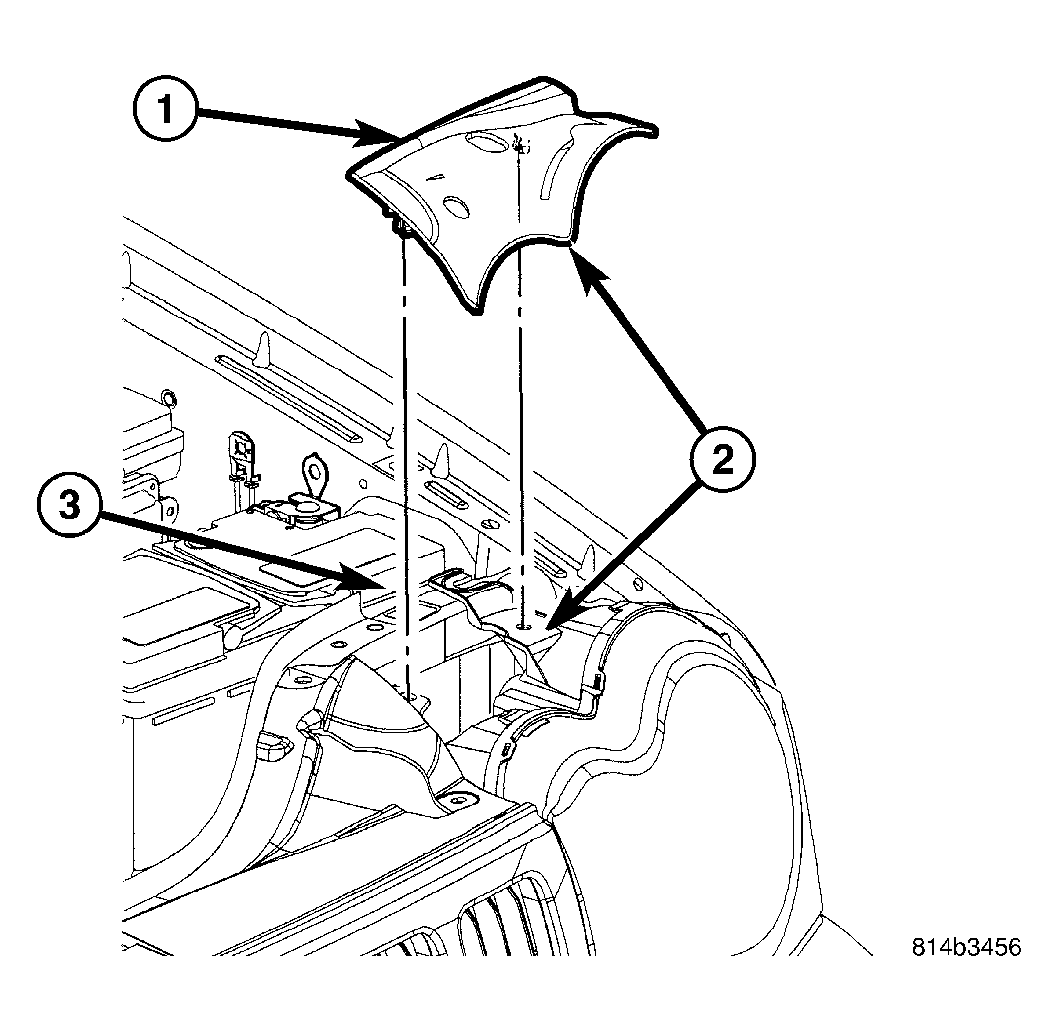

Fig 2: Removing/Installing Headlamp Cover
Courtesy of DAIMLERCHRYSLER CORP.
Install cover (1) over headlamp.
Connect battery negative cable.
