Headlamp Adjustment

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

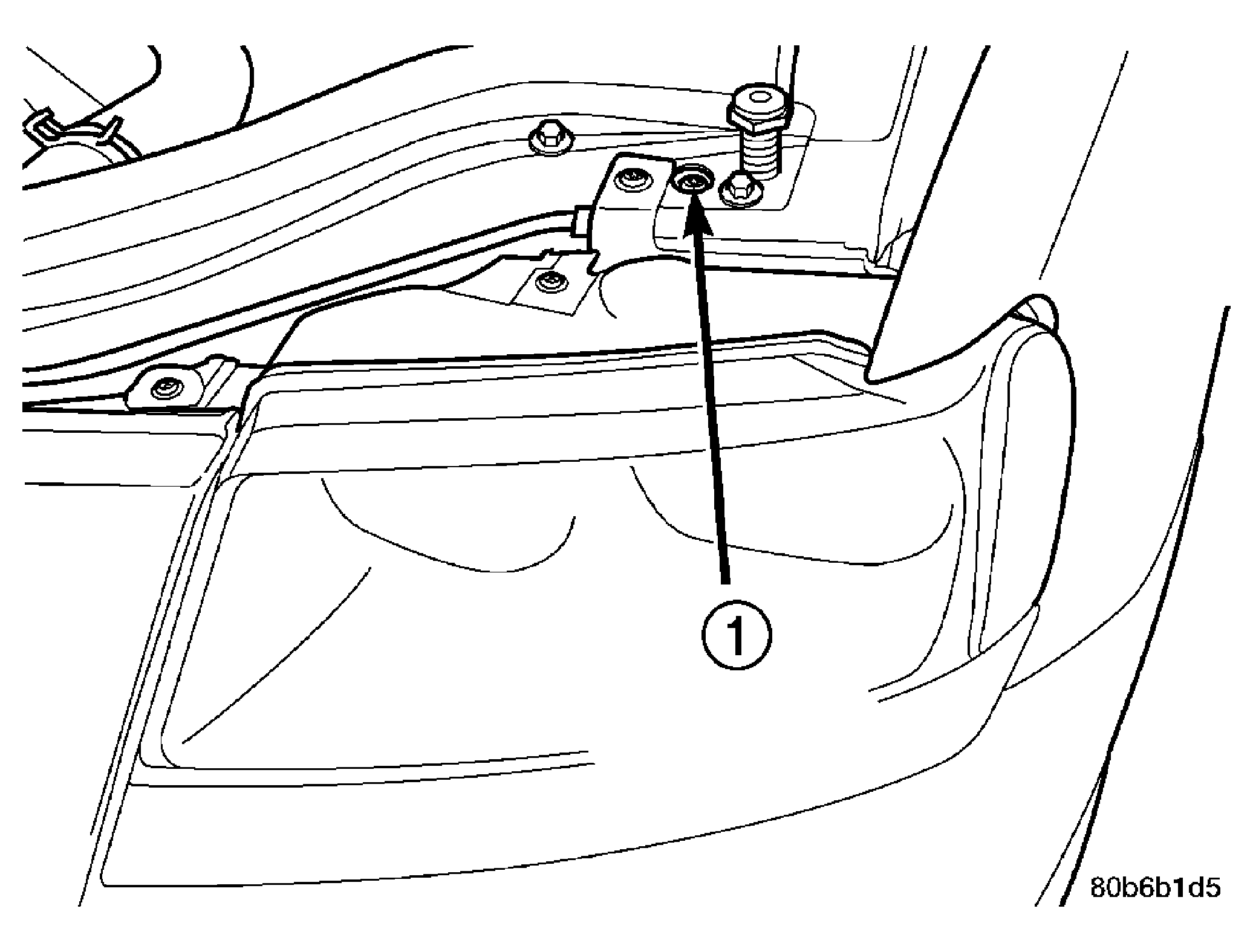

Fig 1: Headlamp Adjustment Screw

Courtesy of DAIMLERCHRYSLER CORP.

Clean front of the headlamps.
Place headlamps on LOW beam.
Cover front of the headlamp that is not being adjusted.

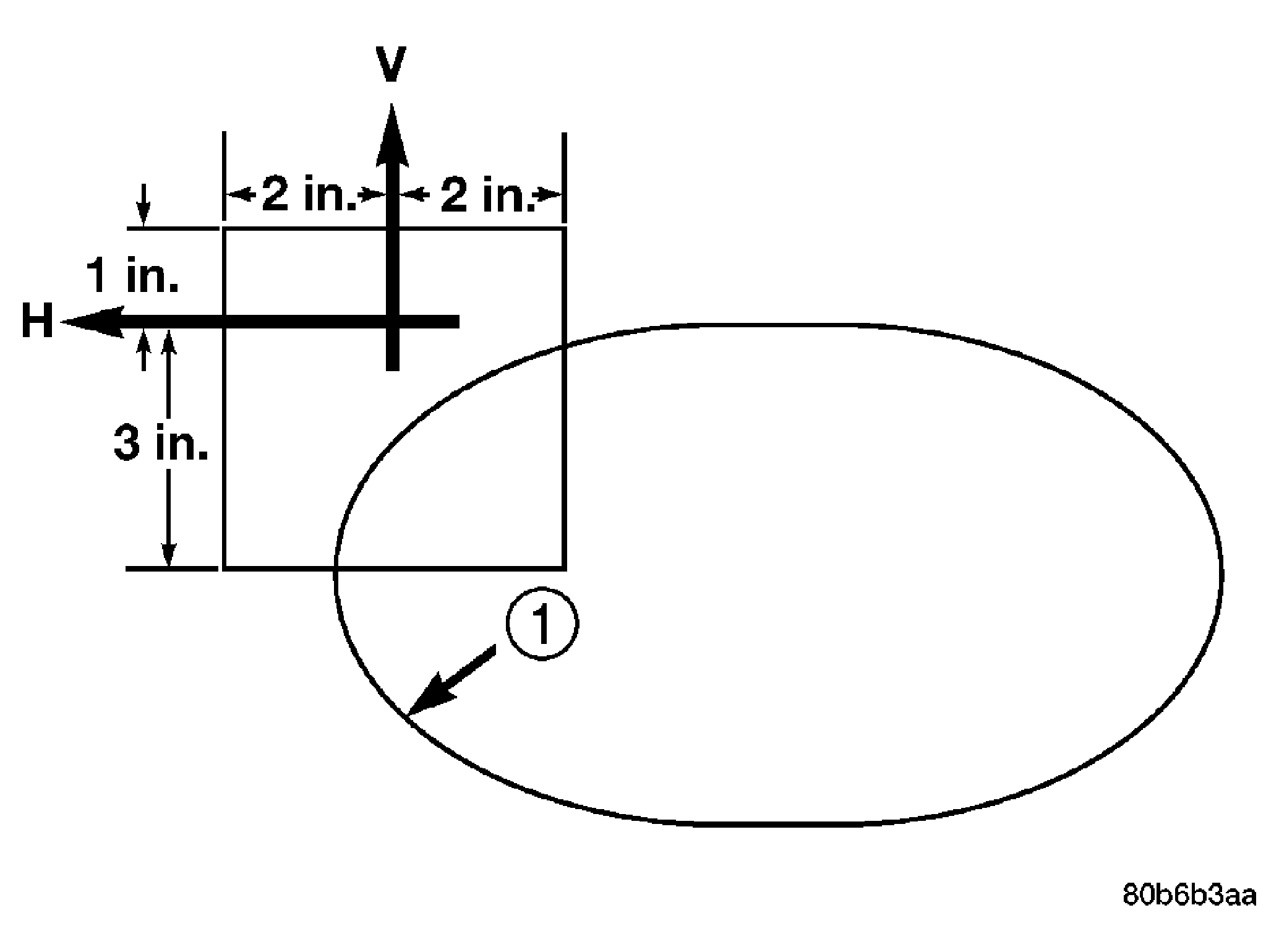

Fig 2: Headlamp Alignment Screen Target
Courtesy of DAIMLERCHRYSLER CORP.

A properly aimed low beam will project the top edge of the beam intensity pattern on the screen from 25 mm (1 in.) above to 75 mm (3 in.) below headlamp centerline. The side-to-side left edge of the beam intensity pattern should be from 50 mm (2 in.) left to 50 mm (2 in.) right of headlamp centerline.
Turn adjustment screw until the top edge of the beam intensity pattern is positioned within 25 mm (1 in.) above or 75 mm (3 in.) below the headlamp horizontal centerline.
Cover front of the headlamp and adjust the other headlamp beam as instructed below.
Rotate the adjustment screw until the top edge of the beam intensity pattern is positioned within 25 mm (1 in.) above or 75 mm (3 in.) below the headlamp horizontal centerline.
