Fog Lamp: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

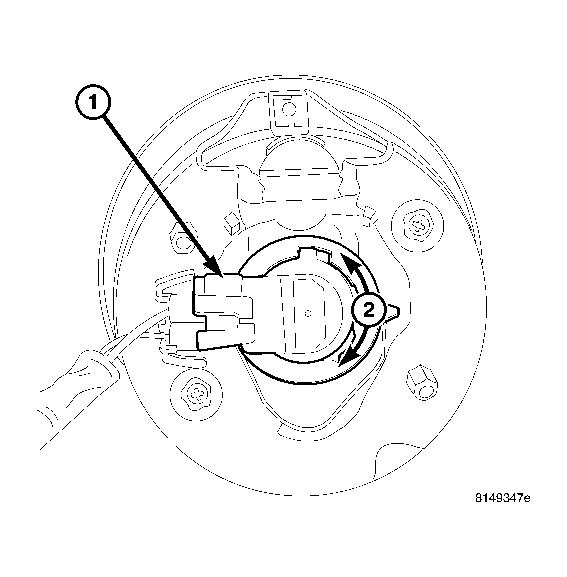

Fig 1: Removing/Installing Fog Lamp
GC0029227Courtesy of DAIMLERCHRYSLER CORP.
  1. Access the rear of the fog lamp assembly by removing the inner fender well to lower front fascia push pins.
  2. Disconnect the fog lamp harness connector from the fog lamp (1).
  3. Rotate the fog lamp (1) 1/4 turn counterclockwise.
  4. Remove the fog lamp from lamp unit.
