Fog Lamp: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

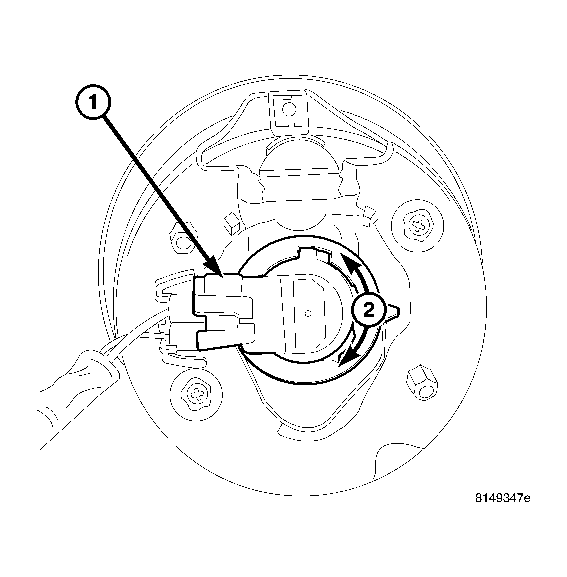

Fig 1: Removing/Installing Fog Lamp
GC0029229Courtesy of DAIMLERCHRYSLER CORP.
CAUTION: Do not touch the bulb glass with fingers or other oily surfaces. Reduced bulb life will result.
  1. Position the fog lamp (1) in fog lamp unit.
  2. Rotate the fog lamp 1/4 turn clockwise.
  3. Connect the fog lamp harness connector.
  4. Align the inner fender well with the lower front fascia and install the push pins.
