Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

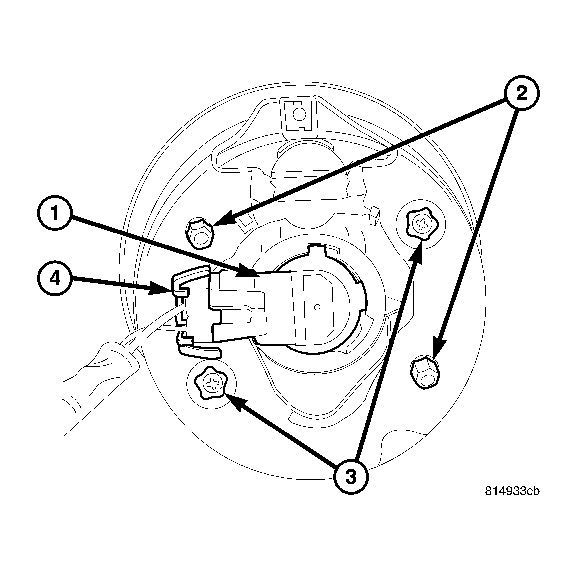

- Position the fog lamp unit in the lower fascia. There are two alignment dowels (2) to assist in this step.
- Install the two screws (3) attaching fog lamp unit to fascia.
- Install the fog lamp (1) and turn it one quarter turn clockwise.
- Connect the fog lamp electrical connector (4).
- Align the fog lamp, if necessary (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/FOG LAMP UNIT - ADJUSTMENTS) .
- Align the inner wheel well with the lower front fascia and install push pins.
- Connect the battery negative cable.
