Fog Lamp Adjustment
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp centerline and straight ahead.

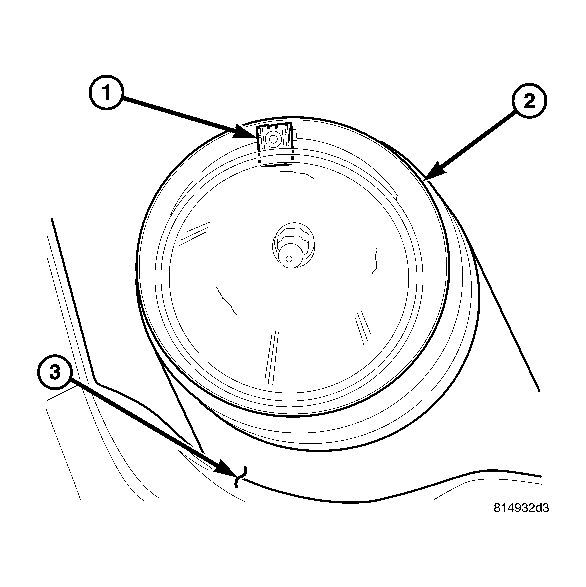

Courtesy of DAIMLERCHRYSLER CORP.
Rotate the adjustment screw (1) to adjust beam height (2).
