Center High Mounted Stop Lamp: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

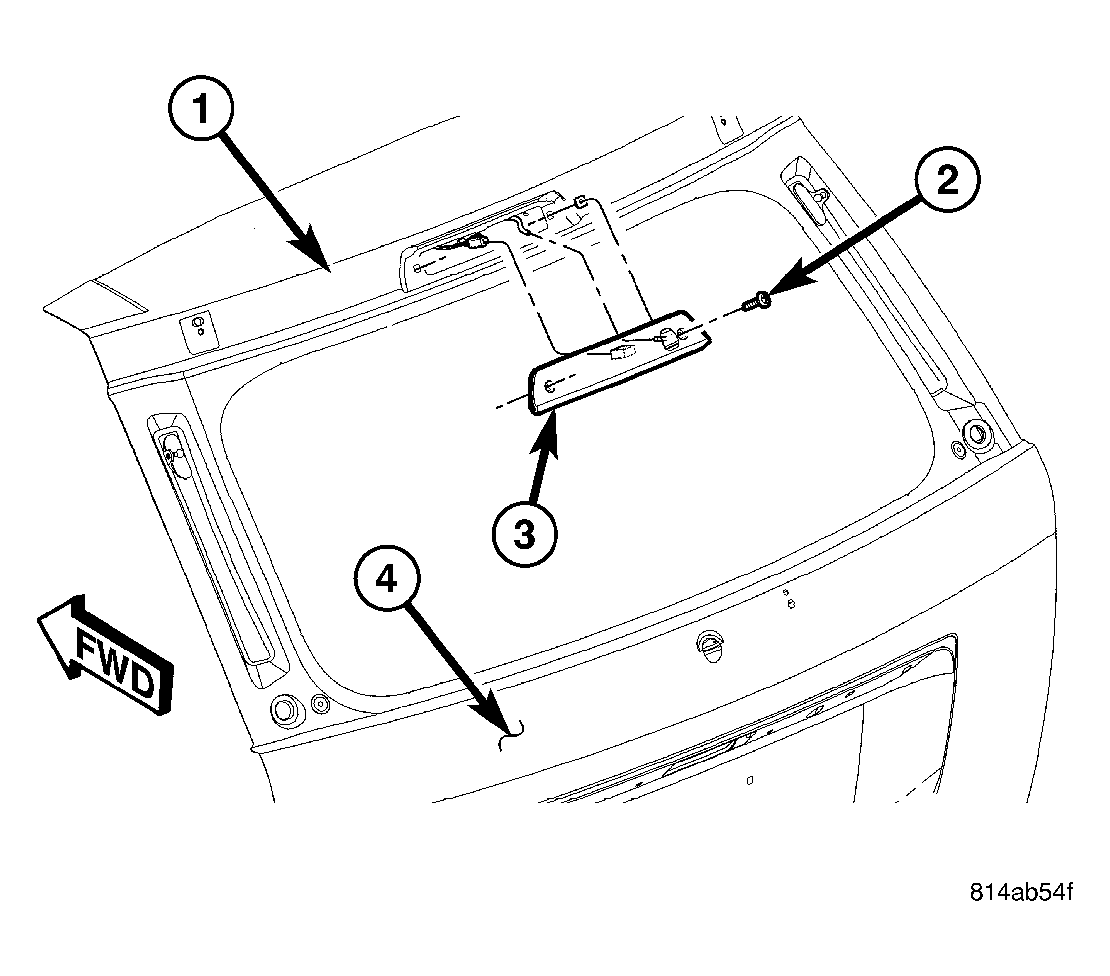

Fig 1: Removing/Installing Center High Mounted Stop Lamp
GC0029222Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the screws (2) attaching CHMSL to the liftgate (3).

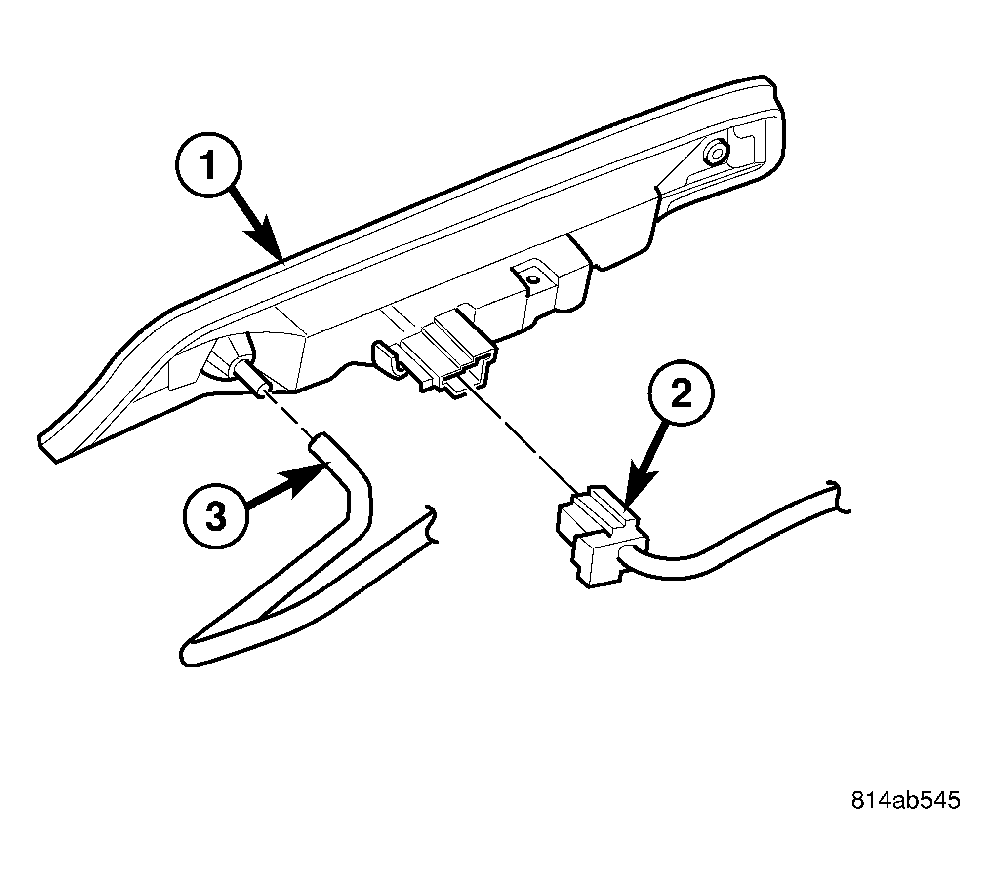

    Fig 2: Identifying CHMSL Wire Harness Connector
    GC0029221Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect the wire harness connector (2).
  4. Separate the CHMSL (1) from the vehicle.
