Center High Mounted Stop Lamp: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

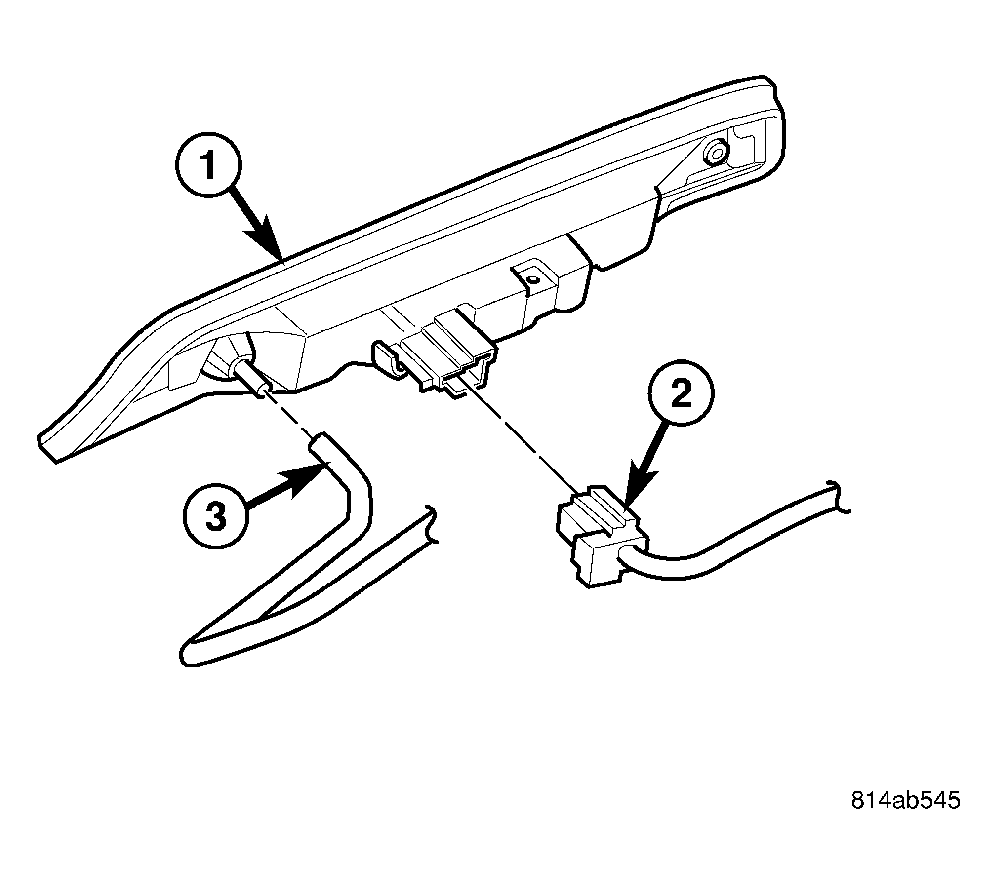

Fig 1: Identifying CHMSL Wire Harness Connector
GC0029223Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect the wire harness connector (2).
  2. Position the CHMSL (1) on liftgate.

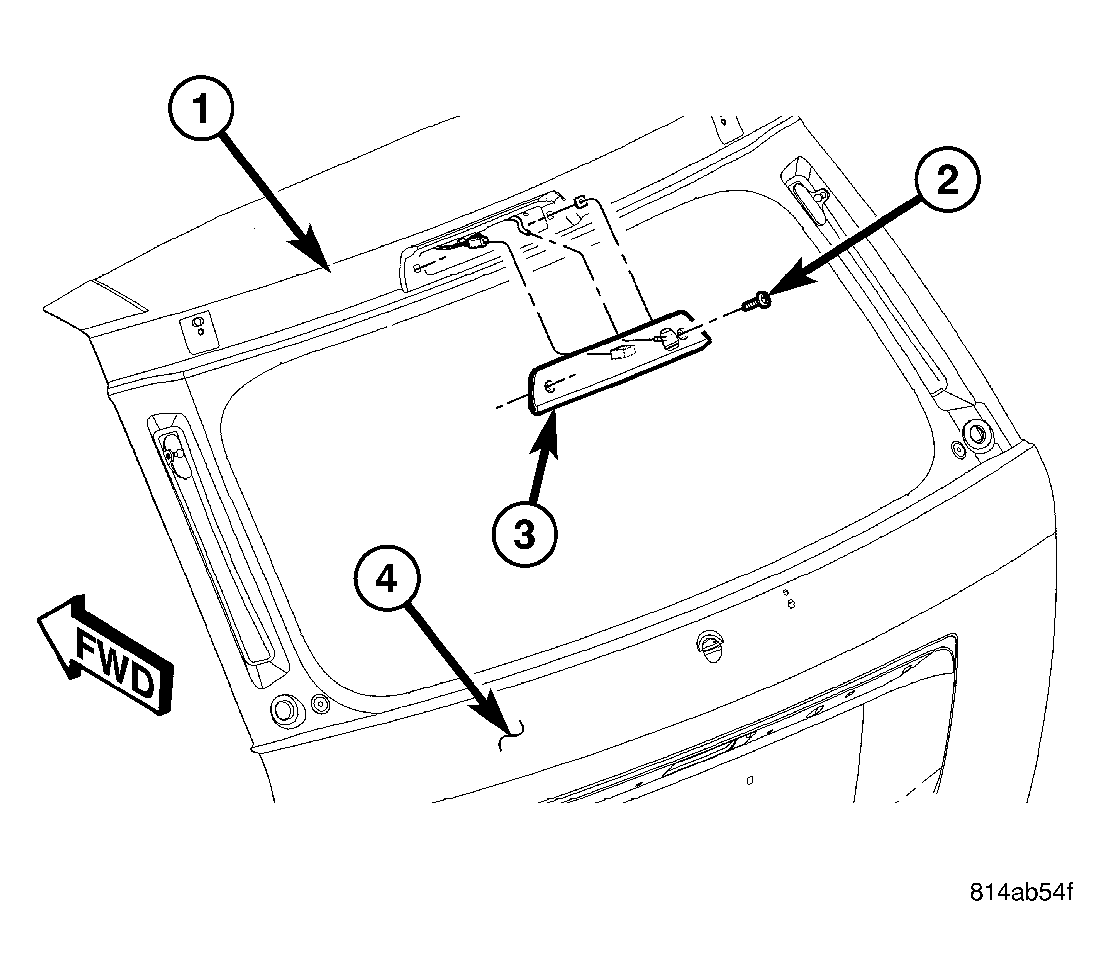

    Fig 2: Removing/Installing Center High Mounted Stop Lamp
    GC0029224Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the screws attaching the CHMSL (2) to the liftgate (1).
  4. Connect battery negative cable.
