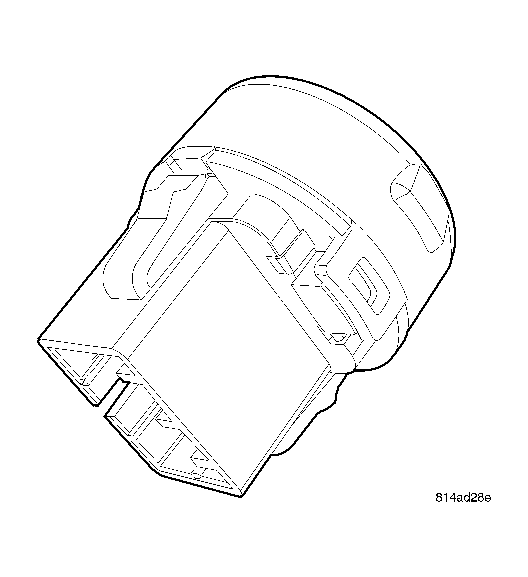

Auto Headlamp Sensor: Removal
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Using a trim stick (special tool #C-4755) or equivalent, gently pry up on the auto headlamp sensor and lift it out of the instrument panel top pad.
- Disconnect the harness connector from the auto headlamp sensor.
- Separate the auto headlamp sensor from instrument panel.
